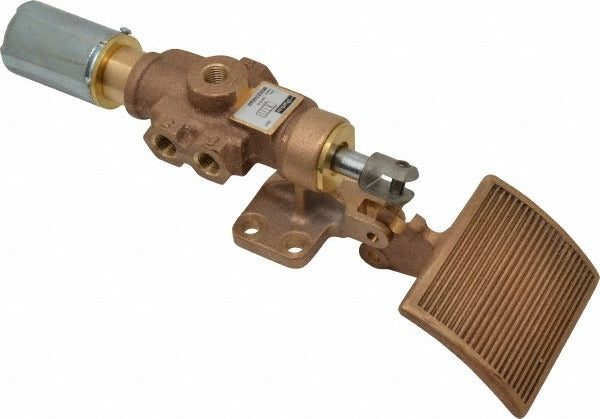

Parker M06224640 4-way Spring Return Pedal Valve 0.25in Npt

Product Description

The PARKER M06224640 is a manually operated 4-way directional control valve designed for pneumatic or hydraulic circuit control in industrial and trade applications. Actuated by a foot pedal and spring-returned to its default position, this 2-position valve allows hands-free operation in press, clamp, or fixture control circuits. It accepts a 0.25 inches NPT port connection and is rated for a maximum working pressure of 225 psi. The foot bracket mounting style makes it well-suited for bench-mount or floor-mount installations where the operator needs both hands free during the work cycle.

This valve is used in industrial pneumatic systems, assembly stations, and mechanical press or clamping applications where foot-controlled actuation is required. It is commonly installed in manufacturing facilities, fabrication shops, and maintenance environments. The spring return function ensures the valve automatically resets to its normal position when foot pressure is released, providing a fail-safe operating state. Technicians and millwrights handling pneumatic control circuits are the primary installers of this component.

Key Features

• 4-way, 2-position directional control valve with spring return
• Pedal actuated for hands-free, foot-controlled operation
• 0.25 inches NPT port connection
• 225 psi maximum working pressure
• Operating temperature range of -15 degrees F to 200 degrees F
• Foot bracket mounting style for floor or bench installations

Compatibility

Designed as an OEM-style replacement or drop-in component for pneumatic directional control circuits requiring a 4-way, 2-position, pedal-actuated valve with 0.25 inches NPT porting.

Installation Notes

Installation should be performed by a qualified pneumatic or mechanical systems technician. Depressurize and lock out the pneumatic circuit before removing or installing any valve. Verify that the supply pressure does not exceed the 225 psi maximum rating and that the operating temperature stays within the rated range. Secure the foot bracket firmly to the mounting surface to prevent valve movement during foot actuation.
