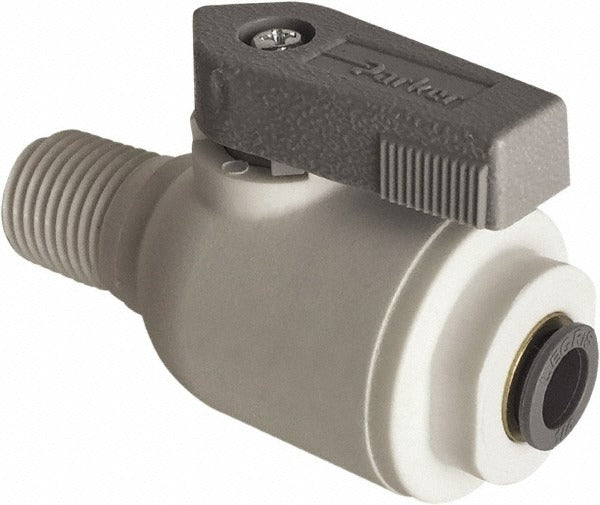

Parker LFPP6VMC8 Ball Valve 1/2 in Mnpt Push-to-connect

Product Description

The PARKER LFPP6VMC8 is a male connector bi-directional manual ball valve designed for 1/2 inch pipe applications with a full port configuration. It features an MNPT x Push-To-Connect end connection, a polypropylene body, and an EPDM seal, making it well suited for low-pressure fluid control in potable water and food-service-adjacent systems. The valve is rated to 150 psi (10 bar) maximum working pressure and uses a wedge-style handle for positive shutoff. Installation is typically performed by licensed plumbers or mechanical contractors in residential and light commercial service environments.

This valve is intended for use in systems where a reliable manual shutoff with bi-directional flow capability is required. The Push-To-Connect end simplifies field connections without the need for soldering or threaded fittings on one side, reducing installation time. With a 3/8 inch tube outside diameter on the push-to-connect port and a 1/2 inch MNPT threaded inlet, this valve fits into a range of plumbing, refrigeration accessory, and water-treatment installations where NSF-certified components are required.

Key Features

• Full port ball valve design allows maximum flow with minimal pressure drop
• Bi-directional flow capability supports flexible installation orientation
• MNPT x Push-To-Connect end connection for fast, tool-free fitting on one end
• Polypropylene body with EPDM seals rated for potable water and food-contact applications
• Wedge-style handle provides clear open and closed indication
• NSF-51 and NSF-61 certified; meets California Prop 65 and FDA requirements

Compatibility

Designed as an OEM-style replacement or new-install component for 1/2 inch MNPT plumbing systems using 3/8 inch OD push-to-connect tubing, including potable water, water treatment, and light commercial fluid distribution applications where NSF-61 certification is required.

Installation Notes

Installation should be performed by a licensed plumber or qualified mechanical technician in accordance with applicable IPC or local plumbing codes. Shut off the water supply and relieve system pressure before beginning any work. Ensure the MNPT threads are wrapped with thread-seal tape or pipe compound before making up the threaded connection. Do not overtighten the push-to-connect fitting; insert tubing fully until it seats and verify retention before restoring pressure.
