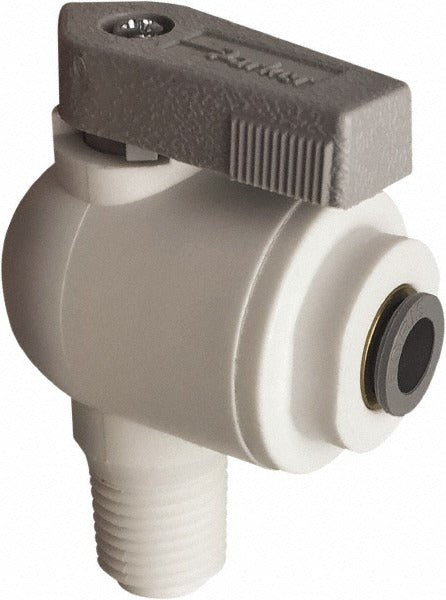

Parker LFPP4VME8 Male Elbow Ball Valve 1/2 in Full Port

Product Description

The PARKER LFPP4VME8 is a male elbow, bi-directional, full-port manual ball valve designed for 1/2-inch pipe connections. It features an MNPT x Push-To-Connect end connection and a polypropylene body with EPDM seals, making it well-suited for fluid handling applications where chemical resistance and flow efficiency matter. The full-port design allows unrestricted flow through the valve, minimizing pressure drop. Rated to 150 psi and 10 bar maximum working pressure, this valve is operated by a wedge-style handle for straightforward on/off control. It is installed by licensed plumbers and HVAC technicians in both residential and light commercial systems.

This valve is used in plumbing, HVAC, and fluid distribution systems where a compact elbow configuration is needed to change flow direction at the point of connection. The Push-To-Connect outlet simplifies installation by eliminating the need for additional fittings on the outlet side, while the MNPT inlet threads directly onto standard male-threaded pipe or fittings. Its NSF-51 and NSF-61 certifications make it appropriate for potable water and food-equipment contact applications. California Proposition 65 compliance is noted on this part.

Key Features

• Full-port design minimizes flow restriction and pressure drop
• MNPT x Push-To-Connect end connection for fast, tool-free outlet attachment
• Polypropylene body resists corrosion and many common chemicals
• EPDM seals provide reliable performance across a broad temperature range
• NSF-51 and NSF-61 certified for potable water and food-contact applications
• Wedge-style handle for positive, tactile on/off operation

Compatibility

Designed for use with 1/2-inch pipe systems utilizing MNPT threaded connections and compatible Push-To-Connect tubing with a 1/4-inch outside diameter. Suitable for potable water, HVAC fluid circuits, and food-service equipment lines where NSF certification is required.

Installation Notes

Installation should be performed by a licensed plumber or qualified HVAC technician in accordance with applicable local plumbing codes and the International Plumbing Code (IPC). Shut off the water supply and relieve system pressure before installing or servicing this valve. Ensure the MNPT threads are properly sealed with an approved thread sealant or PTFE tape before making up the threaded connection. Verify that the Push-To-Connect tubing outside diameter is compatible and that tubing is fully seated before restoring pressure.
