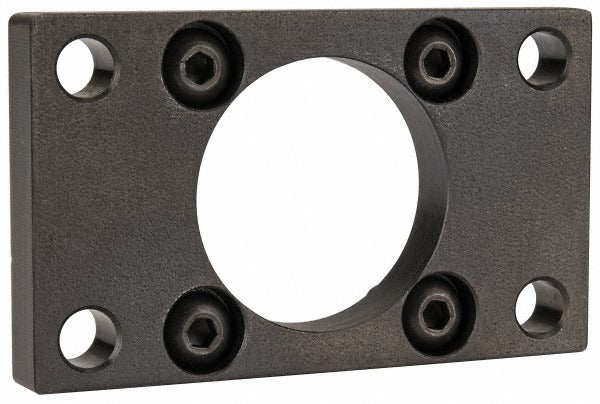

Parker L079700150 Rectangular Flange Mount 1-1/2 in Bore

Product Description

The PARKER L079700150 is a rectangular flange mount accessory designed for use with Parker 3MA and 4MA series pneumatic air cylinders. It provides a solid, bolt-down mounting solution that secures the cylinder body at the end cap face, enabling stable installation in space-constrained assemblies or panel-mounted applications. The mount is sized for a 1-1/2 inch bore cylinder. Industrial maintenance technicians and pneumatic system integrators typically install this component during new system builds or cylinder replacements where a rigid, non-swivel mount is required.

This rectangular flange mount is intended for pneumatic cylinder installations across industrial and commercial automation environments. It is compatible specifically with Parker 3MA and 4MA series air cylinders with a 1-1/2 inch bore. Applications include actuator mounting on machine frames, conveyor systems, and similar pneumatic machinery where the cylinder must be rigidly fixed to a mounting surface at the flange end.

Key Features

• Rectangular flange design provides four-bolt attachment points for rigid cylinder mounting
• Sized for 1-1/2 inch bore Parker 3MA and 4MA series cylinders
• End-of-cylinder mounting style keeps the rod end unobstructed
• OEM-style accessory ensures dimensional fit with Parker series cylinders
• Sold individually as a single unit per package

Compatibility

Designed for use with Parker 3MA and 4MA series pneumatic air cylinders with a 1-1/2 inch bore.

Installation Notes

Installation is typically performed by industrial maintenance technicians or pneumatic system integrators. De-energize and exhaust all compressed air from the pneumatic circuit before removing or installing cylinder mounting hardware. Verify bolt hole pattern alignment with the mounting surface before final assembly. Follow applicable facility safety lockout/tagout procedures during installation.
