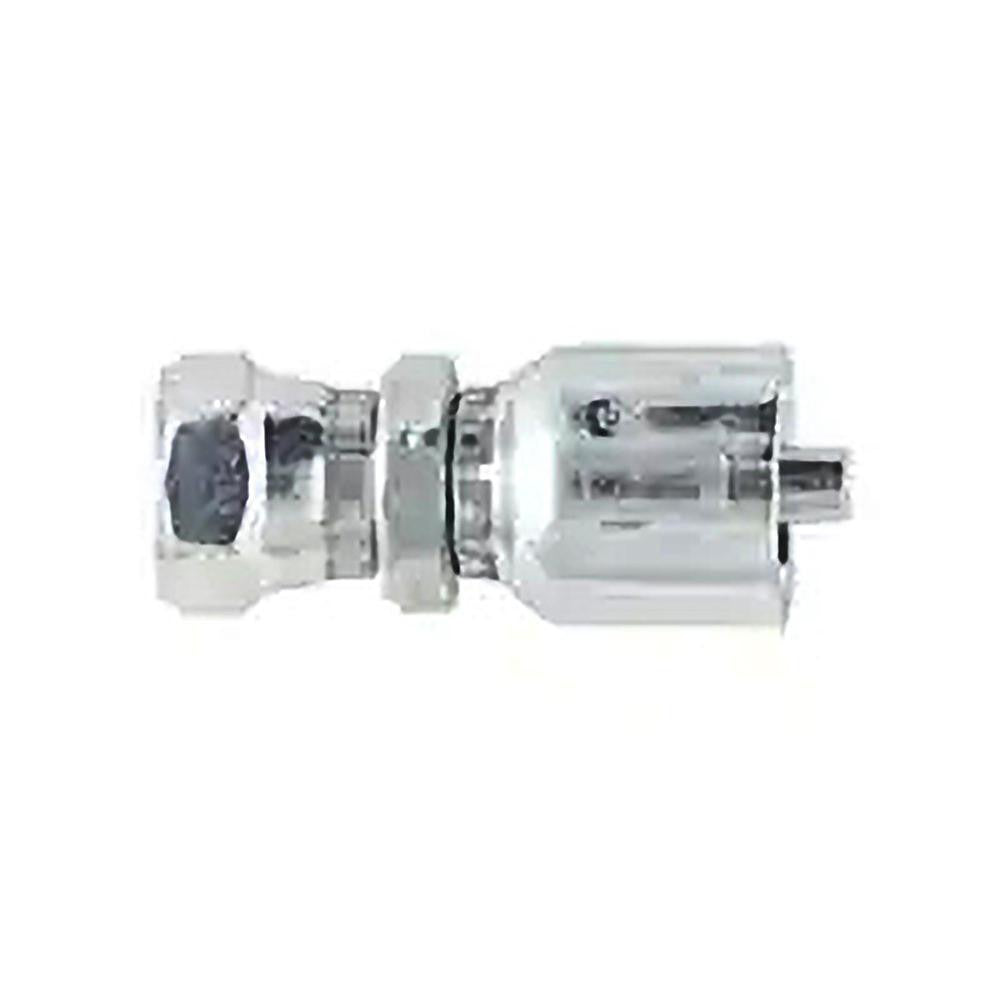

Parker KP84356 Hydraulic Hose Swivel Fitting 0.25 in

Product Description

The PARKER KP84356 is a straight swivel fitting designed for hydraulic hose assemblies. It features a 0.25 inch inside diameter, an M14x1.5 threaded female connection, and a steel construction that holds up to the demands of industrial and mobile hydraulic systems. At 2.07 inches in overall length, this fitting is a Series 43 component intended for use where a swivel end is needed to reduce hose stress and allow rotational movement during assembly or operation. Licensed plumbers, hydraulic system technicians, and fluid power specialists are the typical installers.

This swivel fitting is suited for hydraulic hose termination in both industrial and mobile equipment applications. It is rated for use with a wide range of Parker hose series including 187, 302, 304, 387, 422, 424, 426, 436, 471TC, 471ST, 472TC, 482TC, 482ST, 487, 722, 787, 797, and 881 hoses. Typical install scenarios include hydraulic lines on construction equipment, agricultural machinery, and industrial presses where low-profile straight fittings are required at the hose end.

Key Features

• Straight swivel fitting design reduces hose torque stress during assembly
• Female threaded connection with M14x1.5 thread size
• 0.25 inch (1/4 inch) hose inside diameter — Hose Size 4
• Steel construction for durability in high-pressure hydraulic service
• 2.07 inch overall length for compact installation clearance
• Parker Series 43 fitting — designed for compatibility with multiple Parker hose families

Compatibility

Designed for use with Parker 187, 302, 304, 387, 422, 424, 426, 436, 471TC, 471ST, 472TC, 482TC, 482ST, 487, 722, 787, 797, and 881 hose series with a 0.25 inch inside diameter and M14x1.5 female threaded end connections.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power specialist. Depressurize and bleed the hydraulic system completely before removing or installing any fittings. Use appropriate thread sealant or hydraulic-rated tape as specified by the system design; do not overtighten, as this can damage the swivel seat or thread. Verify hose compatibility and system pressure ratings before returning the system to service.
