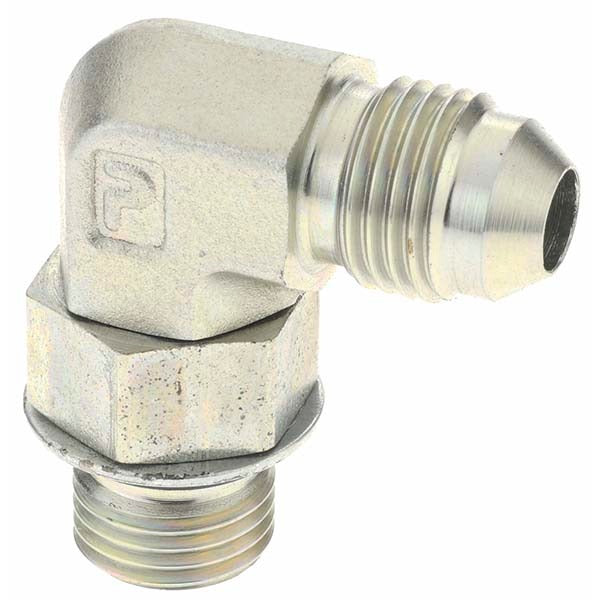

Parker KP70872 Hydraulic Hose 90 Degree Elbow Fitting

Product Description

The PARKER KP70872 is a 90-degree elbow hose fitting designed for high-pressure hydraulic systems. Constructed from steel with an ORB (O-Ring Boss) threaded connection, this fitting accepts a hose with an outside diameter of 0.3125 inches and uses a 1/2-20 thread size. It is rated for a maximum working pressure of 6000 psi, making it suitable for demanding hydraulic circuits in mobile equipment, industrial machinery, and fluid power applications. Installation is handled by hydraulic technicians and millwrights working on pressurized fluid systems requiring a reliable 90-degree directional change at the hose end.

The KP70872 belongs to PARKER's C5OX series and conforms to SAE standard 070220. It is intended for use in hydraulic plumbing where a 90-degree elbow transition is needed at a threaded port. The ORB connection style provides a leak-resistant seal at the port face, making this fitting common in both stationary industrial hydraulic systems and mobile hydraulic equipment. Package quantity is 4 units per pack with a minimum order quantity of 1.

Key Features

• 90-degree elbow geometry for directional routing in tight hydraulic installations
• Steel construction for strength under sustained high-pressure conditions
• ORB (O-Ring Boss) connection type for reliable, leak-resistant port sealing
• Rated to 6000 psi maximum working pressure
• Conforms to SAE 070220 standard
• Part of the PARKER C5OX series

Compatibility

Designed as an OEM-style replacement or service fitting for hydraulic hose assemblies requiring a 0.3125 inch OD hose connection with a 1/2-20 ORB threaded port end, conforming to SAE 070220.

Installation Notes

Installation should be performed by a qualified hydraulic technician. Depressurize and fully relieve the hydraulic system before removing or installing any fittings. Ensure the O-ring is seated correctly on the ORB port before torquing to the port manufacturer's specification. Inspect threads and sealing surfaces for damage before assembly.
