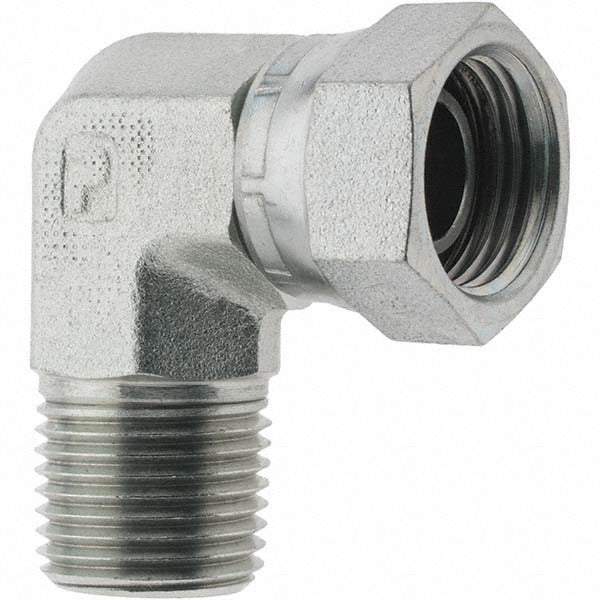

Parker KP61681 Hydraulic Hose Swivel Fitting 5000 Psi

Product Description

The PARKER KP61681 is a 90-degree swivel elbow fitting designed for hydraulic hose assemblies operating at up to 5,000 psi. Built from steel with a male NPTF threaded connection, this fitting is engineered for reliable sealing in high-pressure hydraulic circuits. The swivel design allows the hose to be positioned without twisting or stressing the assembly during installation or service. It is sized for a 1/2-inch hose diameter with a 1/2-14 thread and conforms to SAE 140230 standards. Hydraulic technicians and fluid power specialists install this fitting in industrial, mobile, and commercial hydraulic systems where a secure, leak-resistant 90-degree transition is required.

This fitting is suited for use in hydraulic hose assemblies where directional routing at 90 degrees is needed without putting torsional load on the hose. The 1/2-14 male NPTF thread provides a pressure-tight connection on standard NPTF ports. Typical applications include mobile equipment, industrial machinery, and any hydraulic circuit requiring a swivel-style elbow at the hose termination point. The fitting ships in a package quantity of four, making it practical for shop stock or multi-connection jobs. It is part of the Parker Series 2107 and carries the UNSPSC code 40141734.

Key Features

• 5,000 psi maximum working pressure rated for demanding hydraulic service
• 90-degree elbow swivel configuration for flexible hose routing without line stress
• Male NPTF threaded connection for pressure-tight sealing on standard NPTF ports
• Steel construction for durability in high-pressure hydraulic environments
• Conforms to SAE 140230 standards
• Package quantity of four for efficient shop stocking

Compatibility

Designed as an OEM-style hydraulic swivel fitting for 1/2-inch hose assemblies using 1/2-14 male NPTF threaded ports in high-pressure hydraulic circuits up to 5,000 psi.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power specialist. Depressurize and isolate the hydraulic circuit fully before removing or installing any fittings. NPTF threads rely on thread-form interference for sealing; inspect threads for damage before assembly and follow torque guidelines appropriate for the port material. Do not overtighten, as this can crack ports or distort the fitting body.
