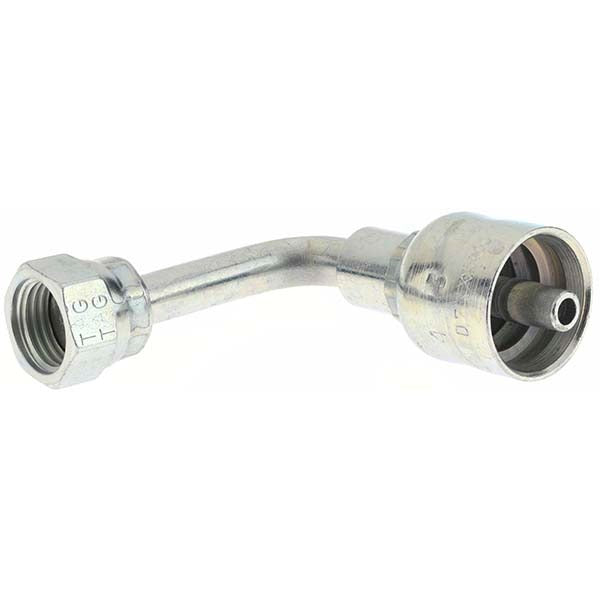

Parker KP46824 Female Seal-lok Swivel 90 Elbow Hose Fitting

Product Description

The PARKER KP46824 is a female Seal-Lok swivel 90-degree elbow hose fitting designed for hydraulic plumbing applications. Machined from steel and threaded at 1/4 inch, it connects to hoses with a 0.25-inch inside diameter (hose size 4). The swivel design allows rotational adjustment during assembly, reducing installation stress on the hose and fitting. The Seal-Lok face-seal interface provides a reliable, leak-resistant connection in high-pressure hydraulic circuits. Licensed hydraulic technicians and fluid power mechanics typically install this fitting in mobile equipment, industrial machinery, and hydraulic power unit assemblies.

This fitting is suited for hydraulic hose routing where a 90-degree turn is required in tight or space-constrained installations. The swivel feature accommodates alignment without twisting the hose body. It is compatible with Parker Series 43 hose assemblies and is rated under ISO 12151-1-SWEL90 for standardized hydraulic fitting performance. Typical installation scenarios include construction equipment, agricultural machinery, and industrial hydraulic systems where steel fittings and Seal-Lok terminations are specified.

Key Features

• Female Seal-Lok swivel interface for leak-resistant face-seal connections
• 90-degree elbow geometry for routing in confined spaces
• Swivel design reduces torque stress on hose during assembly
• Steel construction for durability in hydraulic service
• 1/4-inch threaded connection, compatible with 0.25-inch ID hoses
• Conforms to ISO 12151-1-SWEL90 standard

Compatibility

Compatible with Parker hose series 187 TC, 187 ST, 302, 304, 387 TC, 387 ST, 422, 424, 426, 436, 471TC, 471ST, 472TC, 482TC, 482ST, 487 TC, 487 ST, 722 TC, 722 ST, 787 TC, 787 ST, 797 TC, 797 ST, and 881 hoses with a 0.25-inch inside diameter (hose size 4).

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power mechanic. Depressurize and isolate the hydraulic circuit completely before removing or installing any fittings. The Seal-Lok face-seal design requires proper face-seal contact and torque applied to the swivel nut — do not use thread sealant on face-seal fittings. Follow Parker assembly guidelines and applicable ISO standards for fitting installation torque and hose assembly procedures.
