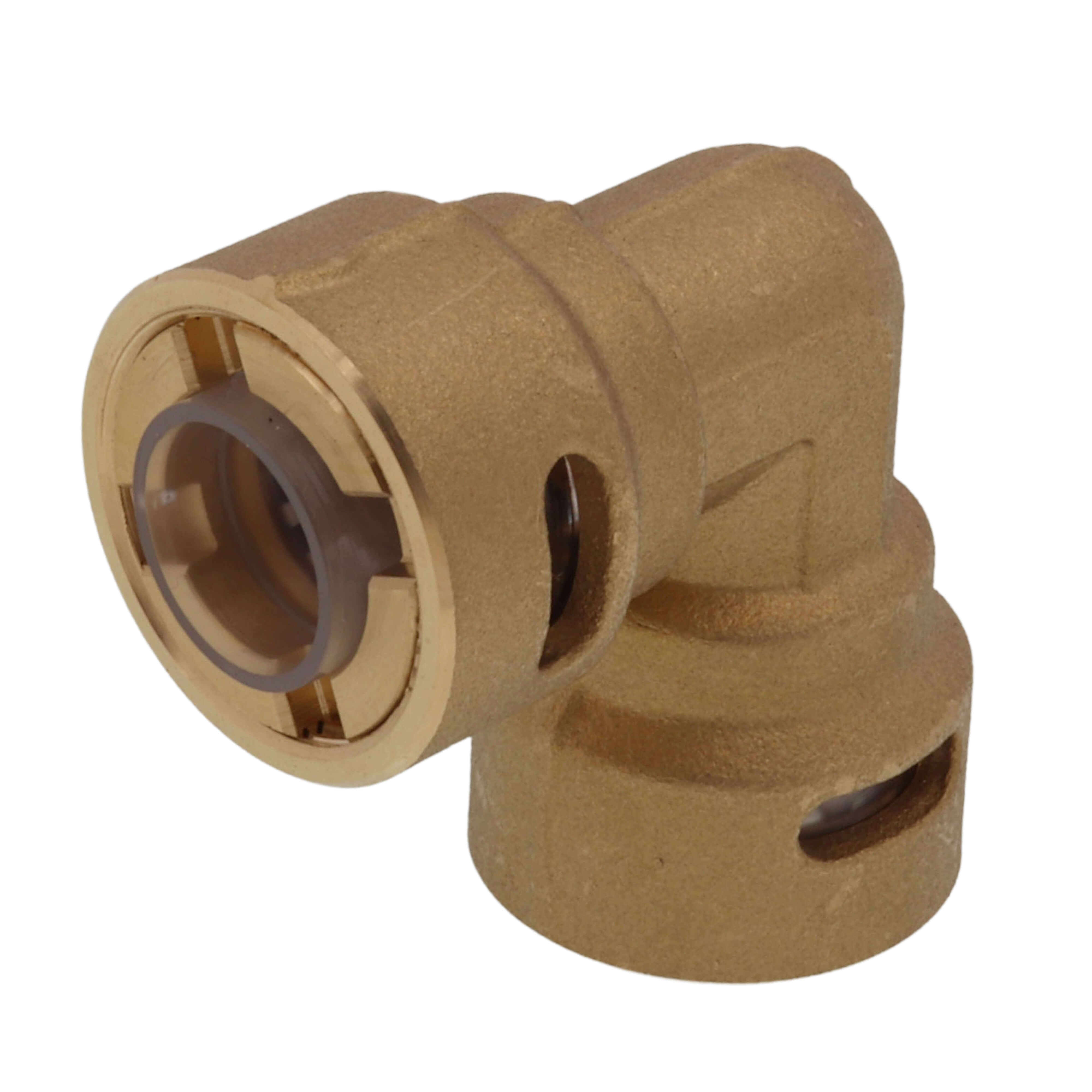

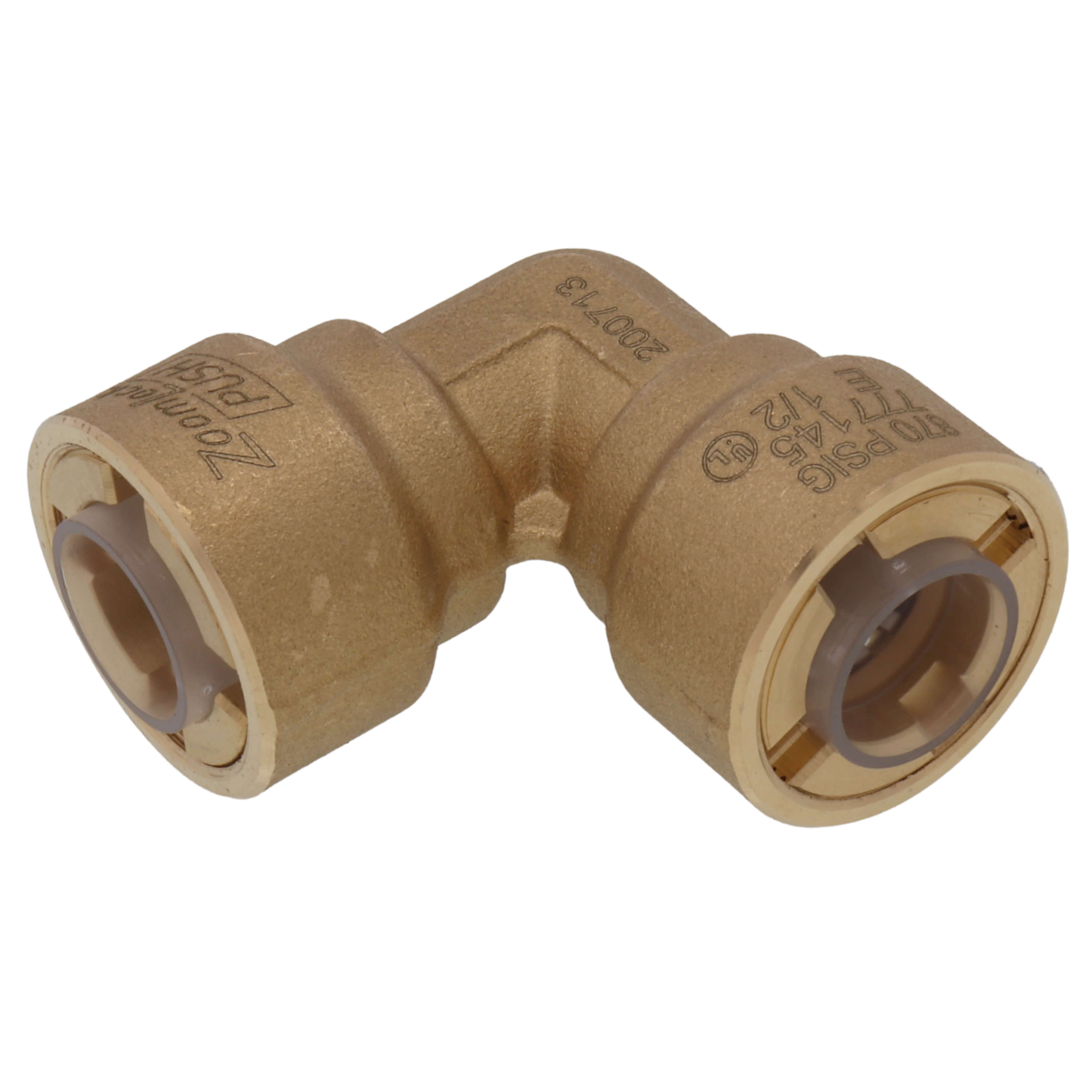

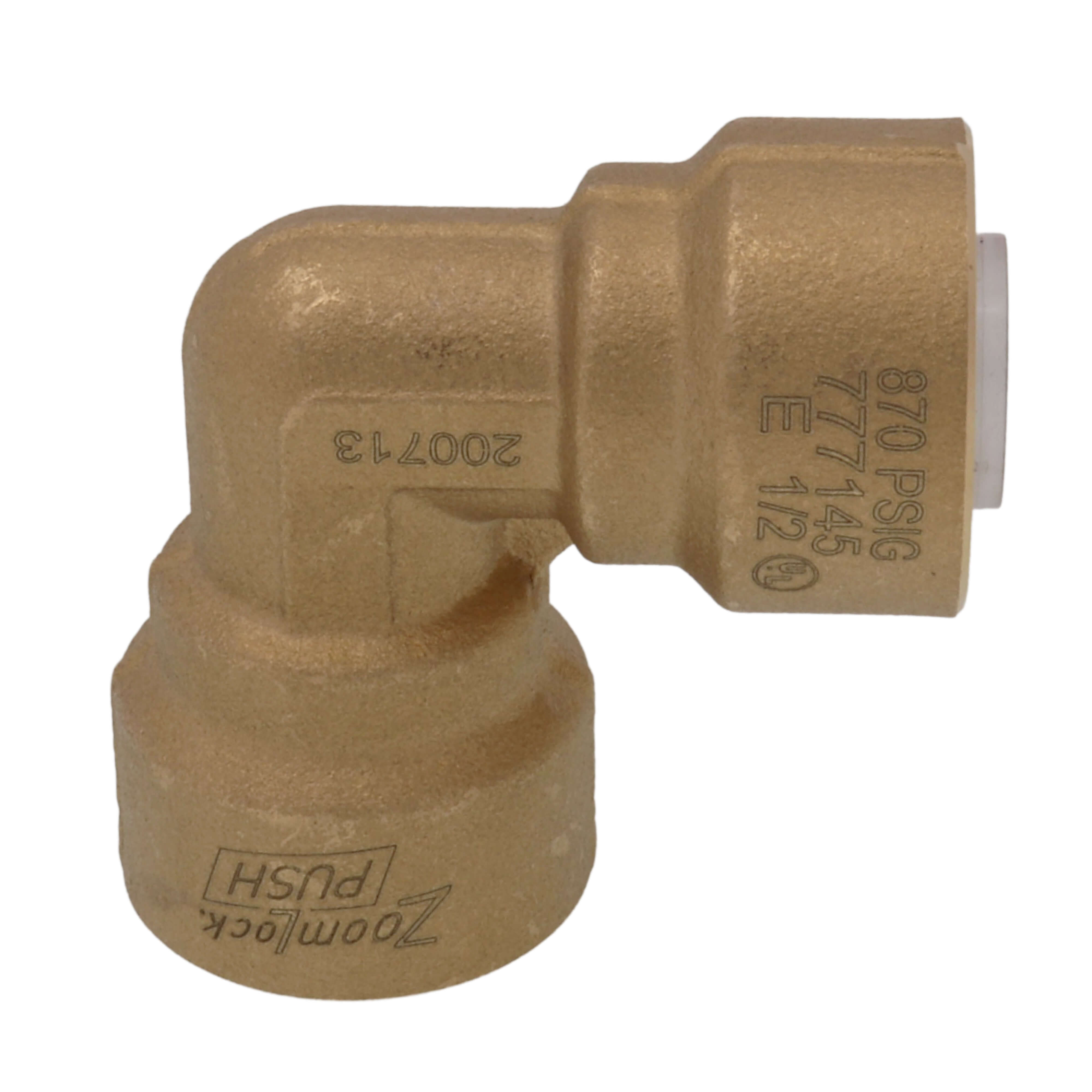

Parker Hannifin 777145 1/2 ZoomLock PUSH Removable 90-Degree Elbow PZKPR-90E8

Product Description

The Parker Hannifin 777145 is a 1/2 inch ZoomLock PUSH removable 90-degree elbow fitting. Designed for HVAC professionals, this push-to-connect fitting streamlines refrigerant line connections without the need for brazing or hot work permits. It allows for quick installations, making it suitable for residential air conditioning, heat pumps, mini-splits, and refrigeration systems.

• No press tool or jaws needed
• Fast and easy installation
• Secure, leak-free connections

Product Highlights

This fitting enhances efficiency and safety in installations by removing fire hazards and the need for nitrogen purging.

Product Information

Standard Information

• Brand: Parker Hannifin
• Part Number: 777145

Technical Specifications

• Connection Size: 1/2 inch
• Applications: High Pressure HVAC/R
• Continuous Operating Temperature: 250°F / 121°C
• O-Ring Temperature Rating: -40°F to +300°F, -40°C to +149°C
• Maximum Rated Pressure (MRP): 700 psi / 48 bar
• Minimum Burst Pressure (UL 207): 2100 psi / 145 bar
• Vacuum Pressure Capability: 500 Microns
• External Leak Rate: <0.1 Ounces of Helium per Year at Operating Pressure Range
• Vibration Resistance: Conforms to UL109
• Fitting Body: Refrigerant Grade Copper, per ASTM-B75 or ASTM-B743
• O-Ring: HNBR
• UL Listed SA7511: Approved for field and factory installations
• Compliance: ASHRAE-15, ANSI 15, ASME B31.5, ANSI 31.5
