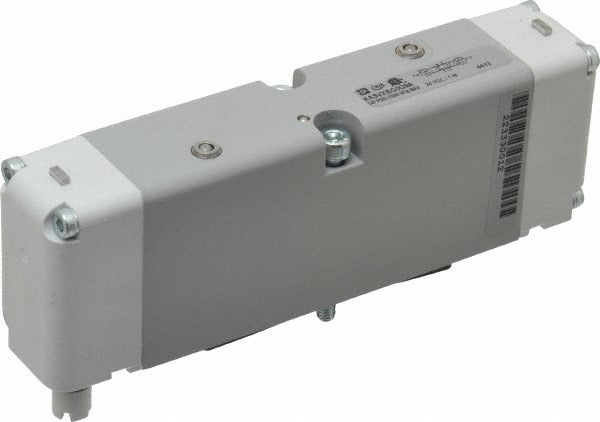

Parker HA5VXBG0G9A Solenoid Valve 24V Aluminum Bspp

Product Description

The PARKER HA5VXBG0G9A is a 24-volt DC solenoid valve designed for pneumatic and fluid control applications. In its unactuated state, all ports are blocked, making it suitable for systems that require a fail-safe closed condition across all flow paths. The body is constructed from aluminum, and the seals are Buna-N, suitable for a range of common media. The valve carries a Cv rating of 1.000 and a Cv Nc factor of 1.1000. It is IP65 rated for dust and water resistance and holds cCSAus approval. Minimum working pressure is 35 psi, and maximum operating temperature is 120 degrees F. Licensed HVAC, instrumentation, and industrial technicians are the typical installers for this valve type.

This valve is built to ISO 15407-2 specifications as a valve-less-base unit, meaning it is intended for use with a compatible manifold or subbase mount. Thread connections conform to BSPP (British Standard Parallel Pipe) specifications, meeting ISO 1179 dimensional requirements. It is suited for industrial automation, process control, and pneumatic manifold assemblies where a blocked-center, de-energized-closed configuration is required. BSPP manifold and subbase ports meet the published dimensional and performance standards for this thread type.

Key Features

• All-ports-blocked unactuated state for fail-safe closed operation on all flow paths
• 24-volt DC coil voltage for compatibility with standard low-voltage control circuits
• Aluminum body construction for reduced weight in manifold assemblies
• Buna-N seals provide broad media compatibility for pneumatic and general fluid service
• IP65 rating for protection against dust ingress and low-pressure water jets
• cCSAus approved and compliant with ISO 15407-2 and ISO 1179 specifications

Compatibility

Designed for use with BSPP manifold and subbase assemblies meeting ISO 1179 and ISO 15407-2 specifications. Specific compatible manifold or subbase part numbers were not provided in the available product data.

Installation Notes

Installation should be performed by a qualified technician familiar with pneumatic or fluid-control systems. De-energize and depressurize the system fully before removing or installing any valve. BSPP threaded connections require appropriate thread sealant and proper torque technique to prevent leakage; consult the manifold or subbase manufacturer guidelines for fitting instructions. Verify coil voltage matches the control circuit supply before energizing.
