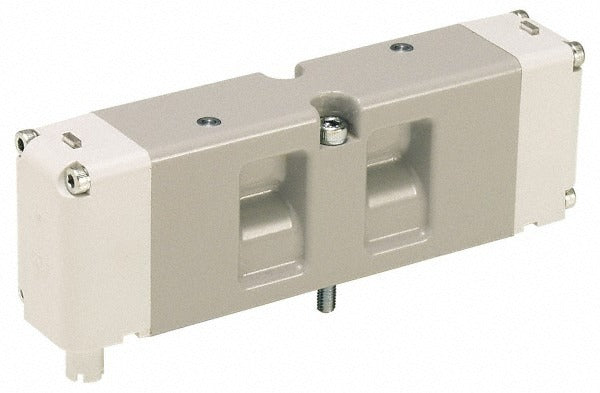

Parker HA2VXBG023A Solenoid Valve 4-way 2-position Bspp

Product Description

The PARKER HA2VXBG023A is a 4-way, 2-position solenoid valve designed for directional control of pneumatic circuits. In its unactuated state, flow passes normally open through ports 1 and 2. The valve body is aluminum with a Buna-N seal and operates at 120 volts AC. It carries a Cv rating of 1.100 and requires a minimum working pressure of 25 psi. Rated IP65 for dust and water resistance, it meets ISO 1179 and ISO 15407-2 specifications and holds cCSAus approval. Licensed HVAC technicians, pneumatic system integrators, and industrial maintenance professionals install this valve in control circuits requiring reliable directional switching.

This valve is suited for pneumatic automation and directional control applications in commercial and industrial environments. The BSPP thread standard and ISO 15407-2 valve-less-base configuration make it compatible with BSPP manifold and subbase port assemblies that conform to ISO 1179 specifications. It is appropriate for systems where a normally open default state through ports 1 and 2 is required when the solenoid is de-energized. Maximum operating temperature is 120 degrees F.

Key Features

• 4-way, 2-position directional control with normally open state through ports 1 and 2
• Aluminum body construction for lightweight, corrosion-resistant performance
• Buna-N seal material suitable for standard pneumatic media
• 120 volt AC coil voltage for direct connection to standard control circuits
• IP65 rated for protection against dust ingress and water jets
• cCSAus approved and ISO 1179 and ISO 15407-2 compliant
• Cv rating of 1.100 with 25 psi minimum working pressure

Compatibility

Designed for use with BSPP manifold and subbase port assemblies that meet ISO 1179 specifications. Configured as an ISO 15407-2 valve less base, requiring a compatible subbase or manifold for installation.

Installation Notes

Installation should be performed by a qualified pneumatic or industrial controls technician familiar with directional control valve assemblies. De-energize and depressurize the pneumatic circuit fully before removing or installing the valve. Verify that the subbase or manifold port threading matches the BSPP standard before mounting. Electrical connections must comply with applicable local codes and the coil voltage rating of 120 volts AC.
