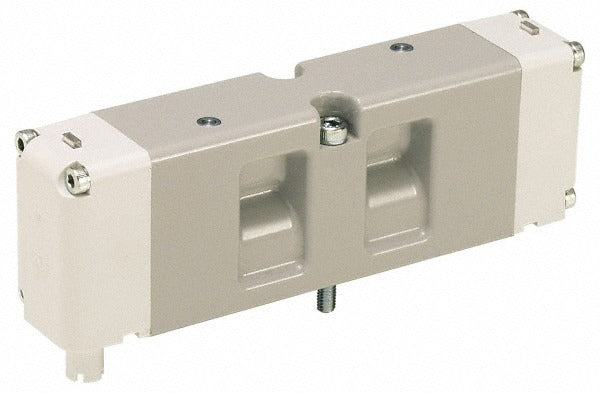

Parker HA1VXBG0G9A 4-way 2-position Solenoid Valve

Product Description

The PARKER HA1VXBG0G9A is a 4-way, 2-position solenoid valve designed for pneumatic directional control applications. It operates at 24 volts DC and features a normally open configuration through ports 1 and 2 in the unactuated state. The valve body is aluminum with a Buna-N seal, making it suitable for a wide range of compressed air and compatible gas service applications. With a Cv rating of 1.100 and a minimum working pressure of 25 psi, it is sized for light-to-medium duty pneumatic circuits. This valve is rated to IP65 and meets ISO 1179 and cCSAus standards. Licensed technicians and industrial maintenance professionals handle installation in pneumatic control panels and automation systems.

This valve is intended for use in pneumatic directional control circuits requiring 4-way, 2-position switching. The BSPP port thread standard makes it compatible with metric manifold and subbase configurations that conform to ISO 15407-2 and ISO 1179 specifications. It is suited for residential and light commercial automation, machine control, and fluid power systems where a compact aluminum-body directional control valve is required. The valve is supplied without a base, per the ISO 15407-2 valve-less-base designation, so a compatible subbase or manifold must be specified separately.

Key Features

• 4-way, 2-position directional control with normally open state through ports 1 and 2
• 24 volts DC coil voltage for low-voltage control circuit integration
• Aluminum body construction for lightweight installation
• Buna-N seal material for compatibility with compressed air and general pneumatic service
• IP65-rated enclosure protection against dust ingress and water jets
• cCSAus approved and compliant with ISO 1179 and ISO 15407-2 specifications

Compatibility

Designed for use with BSPP manifolds and subbases meeting ISO 1179 and ISO 15407-2 specifications. This valve is supplied without a base and requires a compatible ISO 15407-2 subbase or manifold for installation.

Installation Notes

Installation should be performed by a qualified industrial maintenance technician or fluid power specialist. De-energize the control circuit and depressurize the pneumatic system fully before removing or installing the valve. Verify that the subbase or manifold port configuration matches the BSPP thread standard before assembly. Consult applicable local codes and the system schematic to confirm correct port orientation and electrical connection before returning the system to service.
