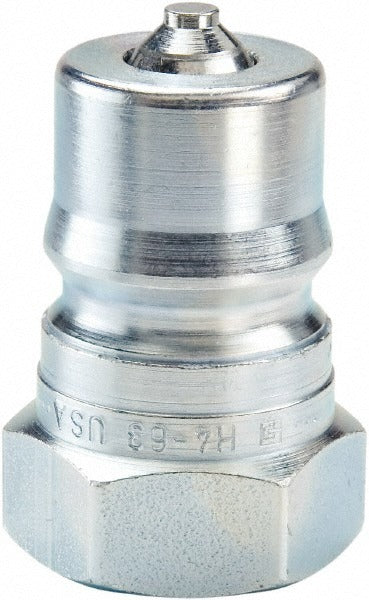

Parker H6-63-T12 Hydraulic Nipple 3/4 in 2500 Psi Sae Orb

Product Description

The PARKER H6-63-T12 is a female straight thread nipple designed for hydraulic hose assemblies operating at pressures up to 2,500 psi. Built from steel with a 3/4-inch body diameter and a 1-1/16-12 thread size, this fitting uses an SAE ORB (O-Ring Boss) shaft type for a reliable, leak-resistant connection. It carries an ISO 7241-1 Series B rating and belongs to Parker's Series 60 fitting line. Licensed hydraulic technicians and industrial maintenance professionals install this fitting in applications where a secure, straight-thread connection is required between hose assemblies and hydraulic system ports.

This fitting is suited for a wide range of industrial and mobile equipment applications. It is rated for use with food and chemical processing lines, compressed gases, industrial hydraulic lines, mobile equipment hydraulic systems, and water and coolant lines. The straight configuration simplifies routing in tight spaces where angled fittings are not required. It handles a maximum temperature of 250 degrees F and a minimum temperature of -40 degrees F, making it appropriate for both indoor industrial environments and outdoor mobile equipment operating in cold climates.

Key Features

• Maximum working pressure of 2,500 psi for demanding hydraulic system service
• SAE ORB (O-Ring Boss) connection type provides a leak-resistant sealed interface
• Steel construction for durability in high-pressure hydraulic environments
• ISO 7241-1 Series B rated, meeting recognized international hydraulic fitting standards
• Straight body shape simplifies hose-to-port routing in space-constrained installations
• Wide temperature range from -40 to 250 degrees F supports varied operating environments

Compatibility

Designed for use with food and chemical processing lines, compressed gas lines, industrial hydraulic lines, mobile equipment hydraulic systems, and water and coolant lines requiring a 3/4-inch hose size and 1-1/16-12 SAE ORB threaded port connection.

Installation Notes

Installation should be performed by a qualified hydraulic technician or industrial maintenance professional. Depressurize and isolate the hydraulic circuit completely before disconnecting or installing any fittings. Inspect the O-ring seating surface and O-ring condition before assembly to ensure a proper seal. Torque the fitting to the system manufacturer's specified value for 1-1/16-12 SAE ORB connections and verify the circuit for leaks before returning the system to service.
