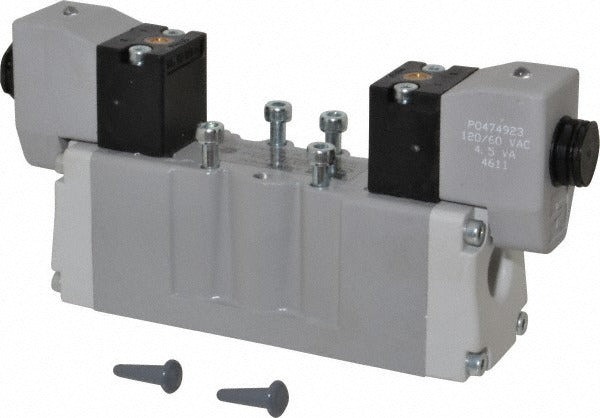

Parker H12VXBG023D 4-way 2-position Solenoid Valve

Product Description

The PARKER H12VXBG023D is a 4-way, 2-position pneumatic solenoid valve designed for directional control of compressed air in industrial and mechanical systems. It operates at 120 volts AC and features a normally open configuration through ports 1 and 2, meaning airflow passes freely in the de-energized state. The valve body is constructed from aluminum, and the internal seals are nitrile, providing reliable performance across a wide temperature range of 5 degrees F to 120 degrees F. With a Cv rating of 1.500, the H12VXBG023D delivers consistent flow capacity for standard pneumatic circuit applications. Licensed HVAC technicians, mechanical contractors, and pneumatic system technicians are the typical installers.

This valve is suited for pneumatic directional control applications in both commercial and light industrial settings. Its BSPP thread standard makes it compatible with manifold and subbase port assemblies that conform to ISO 1179 specifications. It is well-suited for actuator control, cylinder sequencing, and other compressed-air circuit functions where a normally open 4-way valve is required. The compact aluminum body keeps weight low at 2 pounds, making it practical for panel-mounted or inline configurations.

Key Features

• 4-way, 2-position directional control for pneumatic circuits
• Normally open through ports 1 and 2 in de-energized state
• 120 volt AC coil voltage for standard panel integration
• Cv rating of 1.500 for consistent pneumatic flow performance
• Aluminum body with nitrile seals for durability across temperature extremes
• IP65 rated for protection against dust ingress and water jets
• cCSAus approved and compliant with ISO 1179 specifications

Compatibility

Designed for use with BSPP manifold and subbase port assemblies meeting ISO 1179 specifications in pneumatic directional control systems.

Installation Notes

Installation should be performed by a qualified pneumatic systems technician or licensed mechanical contractor. Depressurize the pneumatic circuit and disconnect electrical power before removing or installing the valve. Verify that the supply voltage matches the 120 volt AC coil rating before energizing. Follow applicable local mechanical and electrical codes when integrating into control panels or pneumatic systems.
