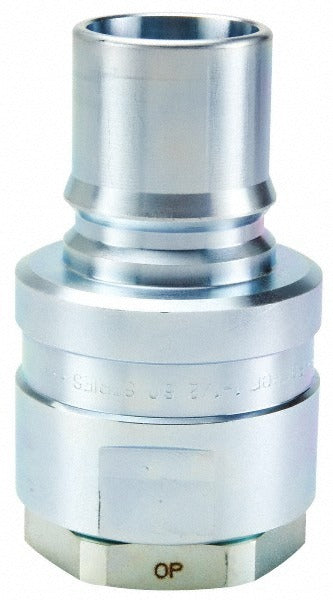

Parker H12-63L Hydraulic Hose Female Pipe Rigid Fitting

Product Description

The PARKER H12-63L is a female pipe rigid fitting designed for hydraulic hose assemblies in demanding fluid-power applications. Constructed from steel, this fitting provides a fixed, non-swiveling connection between hydraulic hose ends and threaded port entries. The NPTF thread form creates a pressure-tight seal through thread interference, reducing reliance on sealants in properly torqued joints. Rated to 1,000 psi, the H12-63L suits moderate-pressure hydraulic circuits. The 1-1/4 inch thread size and 1-1/2 inch body diameter accommodate larger-bore hose assemblies. Licensed hydraulic system technicians and industrial maintenance professionals are the typical installers.

This fitting is used in hydraulic hose assemblies found in industrial machinery, mobile equipment, and fluid-power distribution systems. The rigid female pipe configuration makes it well suited for straight-run terminations at pump ports, manifold blocks, cylinders, and valve bodies where a non-rotating end connection is required. It is appropriate for use in both shop-built hose assemblies and field repair applications requiring a 1-1/4 inch NPTF female port connection at up to 1,000 psi working pressure.

Key Features

• Steel construction provides durability in hydraulic fluid environments
• NPTF thread form delivers a pressure-tight mechanical seal through thread interference
• 1,000 psi pressure rating suitable for moderate-pressure hydraulic circuits
• 1-1/4 inch thread size accommodates larger-bore hose assemblies
• Rigid fitting design provides a fixed, non-rotating hose termination
• 1-1/2 inch body diameter for positive wrench engagement during installation

Compatibility

Designed as an OEM-style replacement or new-installation fitting for hydraulic hose assemblies requiring a 1-1/4 inch NPTF female pipe rigid end connection rated to 1,000 psi.

Installation Notes

Installation should be performed by a qualified hydraulic technician familiar with fluid-power system assembly practices. Depressurize and fully isolate the hydraulic circuit before removing or installing any fittings. NPTF threads rely on thread interference for sealing — inspect threads for damage before assembly and use appropriate thread sealant only if required by the system specification. Tighten to the fitting manufacturer's recommended engagement, and verify there are no leaks before returning the system to service.
