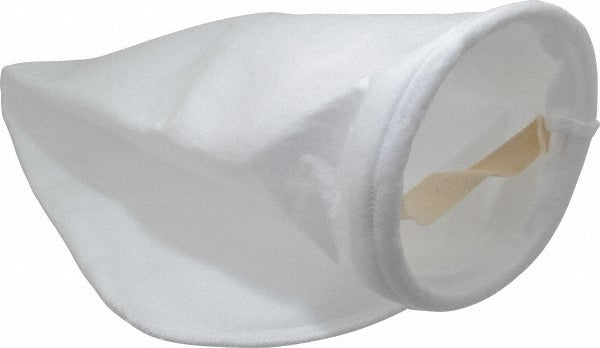

Parker G2P25 High Flow Bag Filter 25 Micron Size 2

Product Description

The PARKER G2P25 is a Size 2 High Flow bag filter rated at 25 microns, designed for liquid filtration in industrial and commercial process systems. Constructed from polypropylene, it measures 7 inches in diameter and 30.5 inches in length, fitting standard Size 2 high-flow filter housings. The 25-micron rating captures particulate at a level appropriate for pre-filtration and general process fluid protection. Rated to a maximum working temperature of 200 degrees F, this filter handles a broad range of fluid types including water, mild chemicals, and process coolants. It is typically installed by industrial maintenance technicians, plumbers, or process engineers in high-flow single-bag filter vessels.

This filter is suited for high-flow liquid filtration applications in commercial and industrial environments where larger flow volumes require a Size 2 configuration. Typical installations include process water systems, cooling loops, chemical feed systems, and industrial wash-down circuits. The polypropylene body material provides compatibility with a wide range of aqueous and mildly aggressive fluid streams. It is not intended for gas filtration or high-pressure hydraulic service.

Key Features

• 25-micron filtration rating for general particulate removal in process fluid systems
• Size 2 high-flow bag format fits standard high-flow single-bag filter housings
• Polypropylene body material offers broad chemical compatibility
• 7-inch diameter and 30.5-inch length provide high surface area for extended service intervals
• Rated to 200 degrees F maximum working temperature

Compatibility

Designed as an OEM-style replacement filter for standard Size 2 high-flow bag filter housings used in industrial and commercial liquid filtration systems.

Installation Notes

Installation should be performed by a qualified technician familiar with liquid filtration systems. Depressurize and isolate the filter housing completely before opening and replacing the bag. Inspect the housing seal and basket for wear before inserting the new filter bag. Follow all applicable local codes and the housing manufacturer guidelines for maximum operating pressure and temperature ratings.
