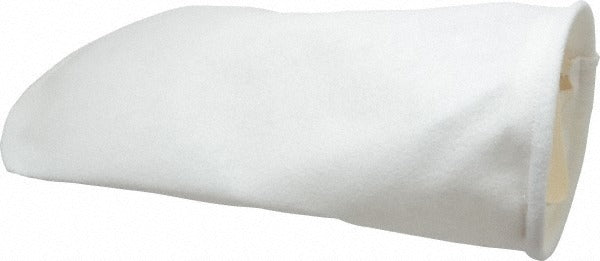

Parker G1PE50 High Flow Bag Filter 50 Micron Size 1

Product Description

The PARKER G1PE50 is a Size 1 high flow bag filter rated at 50 microns, designed to remove particulate contamination from liquid process streams. Constructed with a polyester filter bag, this unit measures 7 inches in diameter and 16.5 inches in length, fitting standard Size 1 high flow filter housings. It handles system temperatures up to 275 degrees F, making it suitable for demanding industrial and commercial filtration applications. Licensed plumbers, mechanical contractors, and process technicians typically specify and install this filter in liquid filtration systems where consistent particulate removal and flow capacity are required.

The G1PE50 is suited for industrial process lines, water treatment systems, chemical processing, and general liquid filtration where a 50 micron removal rating meets the application requirement. Its high flow bag configuration allows higher flow rates through a single element compared to standard bag filters of the same size, reducing the number of housings needed in a system. It is appropriate for both new installations and as a replacement element in existing Size 1 high flow filter housing assemblies.

Key Features

• 50 micron filtration rating for effective particulate removal from liquid streams
• Size 1 high flow bag format supports elevated flow rates in a compact footprint
• Polyester construction provides chemical compatibility across a range of process fluids
• Rated for continuous service up to 275 degrees F
• 7 inch diameter by 16.5 inch length fits standard Size 1 high flow filter housings

Compatibility

Designed as a replacement or maintenance element for standard Size 1 high flow bag filter housings used in industrial and commercial liquid filtration systems.

Installation Notes

Installation should be performed by a qualified mechanical technician or licensed plumber. Isolate and depressurize the filter housing completely before removing the spent bag element and installing the replacement. Verify that the housing o-ring or gasket is in good condition before closing the housing to prevent bypass leakage. Follow applicable local plumbing and mechanical codes when working on process piping systems.
