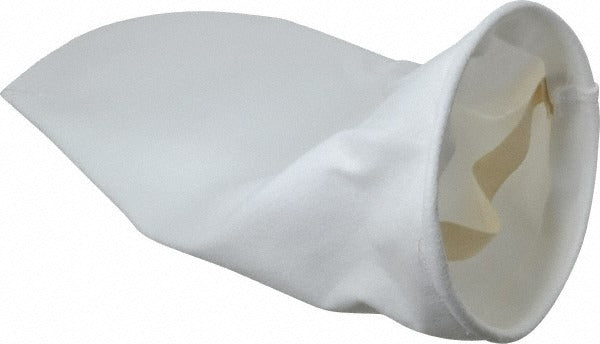

Parker G1PE10 High Flow Bag Filter 10 Micron Size 1

Product Description

The PARKER G1PE10 is a Size 1 high-flow bag filter rated at 10 microns, designed for liquid filtration applications in industrial and commercial process systems. Constructed from polyester media, it captures particulate contamination down to 10 microns while maintaining high flow rates through a larger-diameter bag design. Measuring 7 inches in diameter and 16.5 inches in length, this filter fits standard Size 1 high-flow filter housings. Filtration technicians and maintenance professionals typically install this unit as part of a planned filter change program on process lines, water treatment skids, and chemical handling systems.

The G1PE10 is suited for liquid filtration applications requiring moderate particulate removal in industrial, commercial, or process environments. Its high-flow bag design reduces pressure drop compared to standard-flow bags of equivalent micron rating, making it well suited for systems with higher flow demands. The 275 degrees F maximum working temperature rating extends its usability to hot liquid service applications where standard media bags would be unsuitable.

Key Features

• 10 micron filtration rating for effective particulate capture in liquid service
• Size 1 high-flow bag format fits compatible high-flow filter housings
• Polyester body material offers broad chemical compatibility and temperature resistance
• 7 inch diameter and 16.5 inch length provide high dirt-holding capacity
• Maximum working temperature of 275 degrees F suitable for elevated-temperature liquid applications

Compatibility

Designed as an OEM-style replacement for Size 1 high-flow liquid bag filter housings accepting 7 inch diameter by 16.5 inch length filter bags.

Installation Notes

Installation should be performed by qualified filtration or maintenance technicians following the filter housing manufacturer's service procedure. Depressurize and isolate the filter housing completely before opening to replace the bag. Verify the bag collar seats properly against the housing basket to prevent bypass. Follow applicable facility safety and fluid handling procedures for the process media being filtered.
