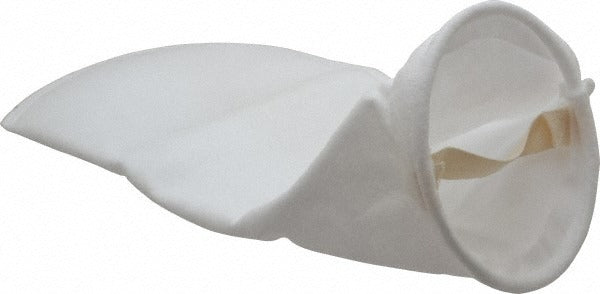

Parker G1P100 High Flow Bag Filter 100 Micron Size 1

Product Description

The PARKER G1P100 is a Size 1 High Flow bag filter rated at 100 microns, designed for industrial and commercial liquid filtration applications. Constructed from polypropylene, this filter measures 7 inches in diameter and 16.5 inches in length, fitting standard Size 1 bag filter housings. It handles operating temperatures up to 200 degrees F, making it suitable for a range of process fluids and water treatment systems. Licensed mechanical and process technicians install this filter as part of routine maintenance on bag filter housings to protect downstream equipment from particulate contamination.

The G1P100 is used in residential, commercial, and light industrial liquid filtration systems where a 100-micron rating provides effective coarse-to-medium filtration. Typical applications include water treatment, chemical processing, and general industrial process filtration where high flow capacity and reliable particulate removal are required. It is installed in any standard Size 1 high flow bag filter housing and is well suited for systems handling elevated temperatures up to 200 degrees F.

Key Features

• 100-micron filtration rating for effective coarse-to-medium particulate removal
• Size 1 high flow design for compatibility with standard high flow bag filter housings
• Polypropylene construction resists a broad range of process chemicals and fluids
• Rated for operating temperatures up to 200 degrees F
• 7-inch diameter by 16.5-inch length for a secure, leak-resistant fit in compatible housings

Compatibility

Designed as an OEM-style replacement for standard Size 1 high flow bag filter housings used in commercial and industrial liquid filtration systems.

Installation Notes

Installation should be performed by a qualified mechanic or process technician familiar with liquid filtration systems. Relieve all system pressure and isolate the housing from the process line before opening the filter vessel. Inspect the housing O-ring or gasket at each filter change and replace if worn to ensure a proper seal. Dispose of the used filter bag in accordance with applicable local regulations, particularly when filtering chemical or industrial process fluids.
