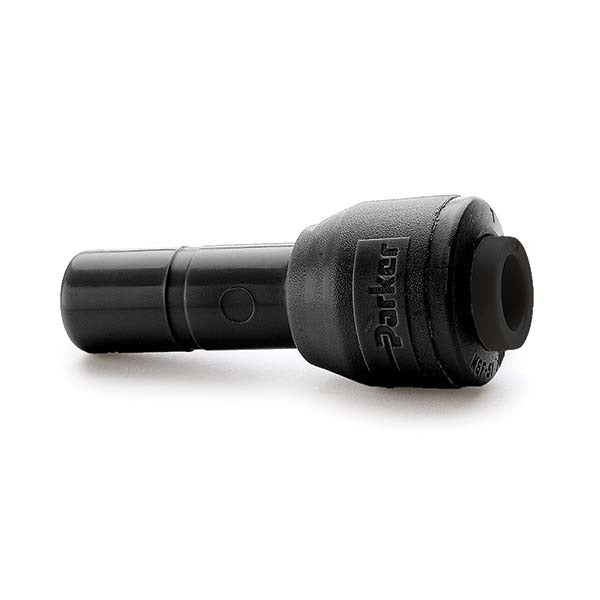

Parker FB6RD8-HBLK Push-to-connect Plug-in Reducer

Product Description

The PARKER FB6RD8-HBLK is a push-to-connect plug-in reducer tube fitting designed to transition between tubing of different outside diameters in fluid and pneumatic distribution systems. Built from Kynar (PVDF) with a black finish, this fitting accepts a 3/8 inch OD tube on one end and a 1/2 inch ID port on the other, delivering a secure, tool-free connection. It is rated to 250 psi and carries a vacuum rating of 28 in-Hg, making it suitable for both pressure and vacuum applications. The FKM o-ring sealing material offers good compatibility with a range of chemicals and fuels encountered in industrial and HVAC plumbing work.

This reducer fitting is used wherever a quick, reliable diameter transition is needed in tubing runs for pneumatic controls, fluid transfer lines, or similar low-to-mid-pressure systems. Its push-to-connect design allows for fast field installation without thread-sealing compounds or compression tools. Typical applications include equipment panels, control lines, and process piping where tubing sizes change along a run. It is installed by licensed plumbers, HVAC technicians, and industrial maintenance mechanics.

Key Features

• Kynar (PVDF) body construction for chemical and UV resistance
• FKM o-ring sealing for broad fluid compatibility
• 250 psi pressure rating for reliable performance in pressurized systems
• 28 in-Hg vacuum rating supports vacuum line applications
• Push-to-connect design allows tool-free, fast installation
• Black color for easy visual identification in multi-line installations

Compatibility

Designed as an OEM-style push-to-connect plug-in reducer for tubing systems requiring a 3/8 inch OD tube to 1/2 inch ID port transition in pneumatic and fluid distribution applications.

Installation Notes

Depressurize and de-energize the system completely before removing or installing any push-to-connect fittings. Ensure tubing ends are cut cleanly and squarely with no burrs before insertion to achieve a proper seal. This fitting is installed by qualified HVAC technicians, plumbers, or industrial mechanics following applicable codes. Do not exceed the rated working pressure or vacuum of 250 psi and 28 in-Hg respectively.
