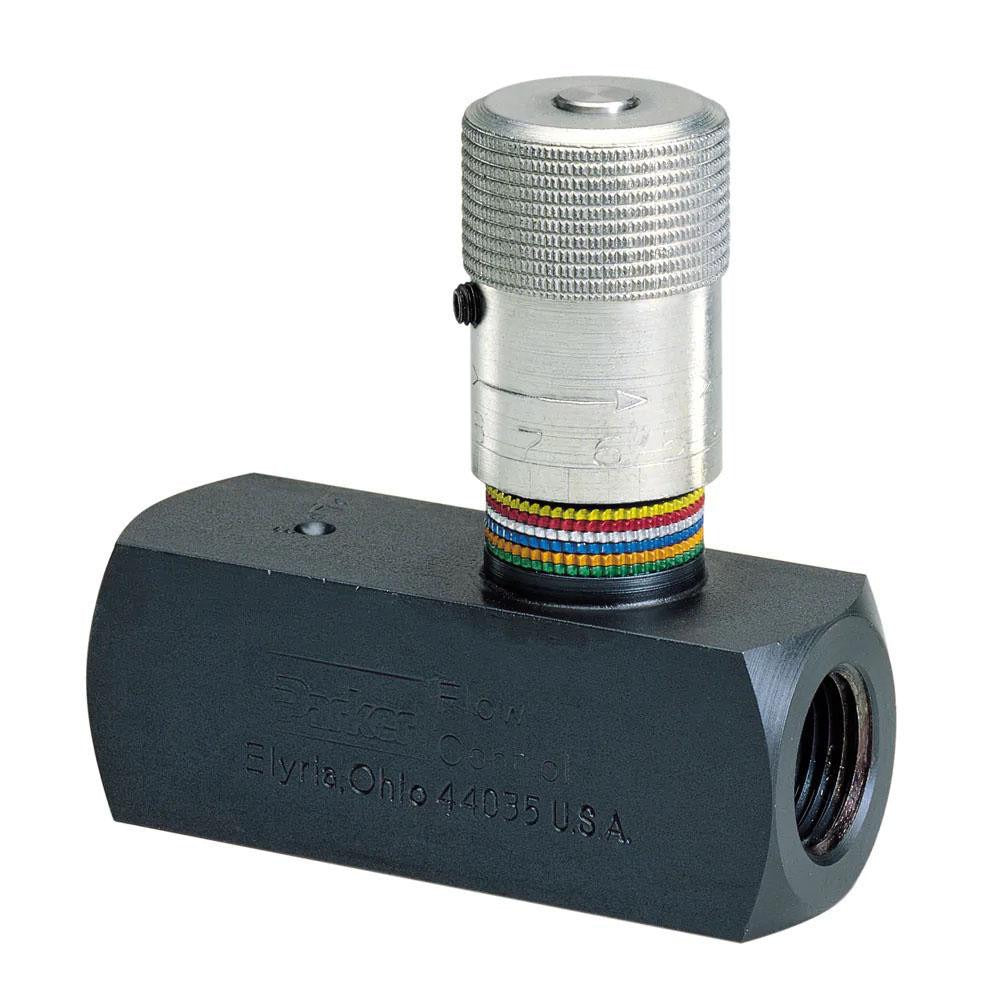

Parker F620S Hydraulic Control Valve 5 Gpm 5000 Psi

Product Description

The PARKER F620S is a hydraulic control valve designed to regulate flow in high-pressure hydraulic circuits. Built with a steel body and nitrile seals, it handles a maximum working pressure of 5000 psi and a maximum flow rate of 5 GPM. The knob handle provides direct manual control of flow, making it a straightforward choice for systems where precise, on-the-spot adjustment is needed. With an overall length of 3.12 inches and a 9/16-18 UNF thread size, it installs directly into standard hydraulic line fittings. Licensed hydraulic system technicians and industrial equipment mechanics are the primary installers.

This valve is suited for mobile hydraulic equipment, industrial machinery, and power unit applications where manual flow control at a single circuit point is required. The 9/16-inch inlet and 9/16-18 UNF thread standard make it compatible with common SAE-pattern hydraulic ports. Its compact form factor and knob-style actuation are well matched to panel-mount or inline installations in tight spaces on equipment such as lifts, presses, and utility vehicles.

Key Features

• Maximum working pressure of 5000 psi for high-pressure hydraulic circuit use
• Maximum flow rate of 5 GPM for controlled, metered flow regulation
• 9/16-18 UNF thread for direct connection to standard SAE hydraulic fittings
• Steel body construction for durability in demanding hydraulic environments
• Nitrile seals compatible with petroleum-based hydraulic fluids
• Knob handle design for manual flow adjustment without additional tooling

Compatibility

Designed as an OEM-style replacement or direct-fit addition for hydraulic systems using 9/16-18 UNF ported components rated to 5000 psi.

Installation Notes

Installation should be performed by a qualified hydraulic technician. Depressurize and isolate the hydraulic circuit fully before removing or installing any valve. Use appropriate thread sealant rated for hydraulic service and verify torque requirements against the equipment manufacturer specifications. Confirm system operating pressure and flow rate do not exceed the valve ratings of 5000 psi and 5 GPM prior to returning the circuit to service.
