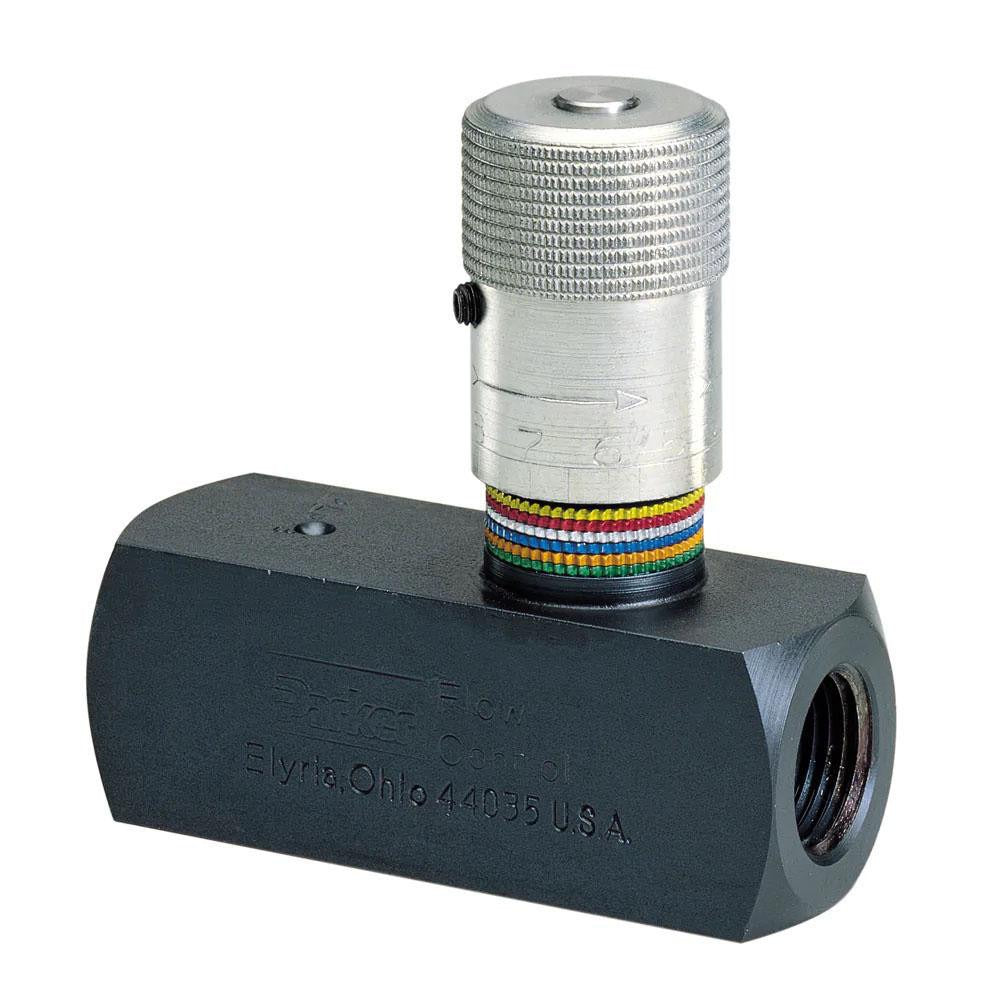

Parker F1020S Hydraulic Control Valve 15 Gpm 5000 Psi

Product Description

The PARKER F1020S is a hydraulic control valve designed to regulate flow in hydraulic systems operating at pressures up to 5,000 psi. Built with a steel body and nitrile seals, it handles a maximum flow rate of 15 GPM through a 7/8-inch inlet with a 7/8-14 UNF thread connection. The knob handle provides manual flow adjustment directly at the valve. At 4 inches overall length and 1.19 inches overall width, it fits compact hydraulic circuit installations. Licensed hydraulic technicians and industrial mechanics install this valve in mobile and stationary hydraulic systems where precise manual flow control is required.

The F1020S suits residential and light commercial hydraulic applications as well as mobile equipment hydraulic circuits. Its 7/8-14 UNF thread makes it compatible with standard SAE hydraulic fittings commonly found in agricultural, construction, and industrial machinery. The knob-style handle is suited for panel-mount or in-line installations where repeated manual adjustment is part of normal system operation.

Key Features

• Maximum working pressure of 5,000 psi for high-pressure hydraulic circuits
• 15 GPM maximum flow rate supports medium-duty hydraulic system demands
• 7/8-14 UNF thread for compatibility with standard SAE hydraulic connections
• Steel body construction for durability in demanding hydraulic environments
• Nitrile seals provide resistance to petroleum-based hydraulic fluids
• Knob handle allows manual flow adjustment without additional tools

Compatibility

Designed as an OEM-style replacement or direct-fit addition for hydraulic systems using 7/8-14 UNF port connections rated for up to 5,000 psi and 15 GPM flow.

Installation Notes

Installation should be performed by a qualified hydraulic technician. Depressurize and isolate the hydraulic circuit completely before removing or installing any valve. Verify thread engagement and use appropriate hydraulic thread sealant or O-ring fittings as required by the system design. Inspect all connections for leaks before returning the system to full operating pressure.
