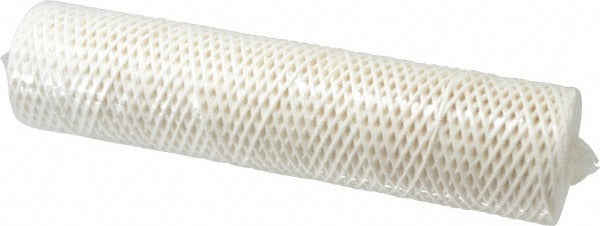

Parker E15R10A String-wound Cartridge Filter 20 Micron

Product Description

The PARKER E15R10A is a string-wound cartridge filter designed for plumbing and liquid filtration applications. Built with a rayon winding over a polypropylene plastic core, it delivers 20-micron particulate filtration in a standard 10-inch length with a 2.5-inch outside diameter. The rayon media meets FDA material grade requirements, making it appropriate for potable water and food-grade process lines. It handles operating temperatures up to 120 degrees F. Licensed plumbers and filtration technicians install this cartridge in standard housings as part of point-of-entry or point-of-use water treatment systems.

The E15R10A fits standard 10-inch filter housings used in residential and light commercial plumbing installations. Typical applications include sediment removal in municipal water supply lines, well water pre-filtration, and process water conditioning. The 20-micron rating targets suspended solids such as silt, sand, rust particles, and scale. Its FDA-grade rayon construction makes it suitable for systems where incidental contact with drinking water or food-process fluids is a factor.

Key Features

• 20-micron filtration rating for sediment and suspended solids removal
• Rayon string-wound media with FDA material grade compliance
• Polypropylene plastic core for structural integrity and chemical resistance
• Standard 10-inch length fits widely available filter housings
• 2.5-inch outside diameter for positive housing seat
• Rated to 120 degrees F maximum operating temperature

Compatibility

Designed as an OEM-style replacement cartridge for standard 10-inch plumbing filter housings accepting a 2.5-inch OD string-wound cartridge.

Installation Notes

Shut off the water supply and relieve system pressure before opening the filter housing. This cartridge is installed by licensed plumbers or qualified water treatment technicians following applicable IPC and local plumbing code requirements. Inspect the housing O-ring for wear and replace if necessary before reinstalling the sump. Do not exceed the rated 120 degrees F operating temperature or the pressure rating of the housing in use.
