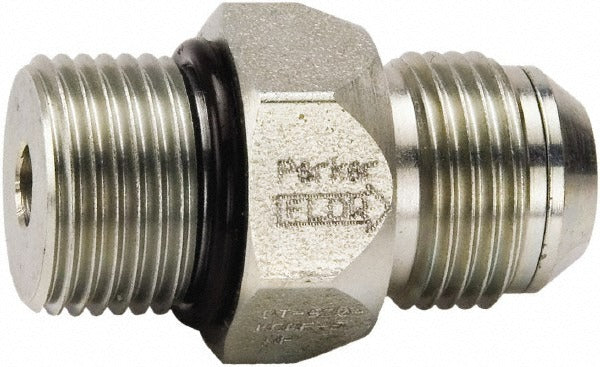

Parker DT-500-MOMF-65 Hydraulic Check Valve 15 Gpm

Product Description

The PARKER DT-500-MOMF-65 is a hydraulic control check valve designed for high-pressure fluid power systems. It controls flow direction, preventing backflow in hydraulic circuits and protecting downstream components from pressure surges. The valve is rated for a maximum working pressure of 5,000 psi and a maximum flow rate of 15 GPM. Its all-steel body with metal seals delivers durability in demanding industrial and mobile hydraulic applications. At 1.71 inches overall length and 0.88 inches in both width and height, it fits in compact manifold and inline plumbing arrangements. Licensed hydraulic system technicians and fluid power mechanics are the typical installers.

This check valve is suited for inline hydraulic plumbing in mobile equipment, industrial machinery, and other high-pressure fluid power systems operating up to 5,000 psi. Its Male ORB x Male JIC thread configuration on a 3/4-16 inlet makes it compatible with standard SAE and JIC hydraulic fittings used across a wide range of equipment platforms. It is appropriate for both OEM assembly and field service replacement in systems requiring reliable unidirectional flow control.

Key Features

• Rated for up to 5,000 psi maximum working pressure
• Maximum flow rate of 15 GPM for high-volume circuit applications
• Male ORB x Male JIC thread standard on a 3/4-16 inlet for broad fitting compatibility
• Steel body construction with metal seals for long service life in harsh hydraulic environments
• Compact envelope: 1.71 inches length, 0.88 inches width, 0.88 inches height
• Lightweight at 0.162 pounds, suitable for space- and weight-sensitive installations

Compatibility

Designed as an OEM-style replacement or service component for hydraulic systems utilizing 3/4-16 Male ORB x Male JIC inline check valve fittings rated to 5,000 psi.

Installation Notes

Installation should be performed by a qualified fluid power technician or hydraulic system mechanic. Depressurize and isolate the hydraulic circuit completely before removing or installing any valve. Verify that inlet and outlet thread types match the existing plumbing before torquing connections. Confirm system operating pressure does not exceed the valve maximum rating of 5,000 psi after installation.
