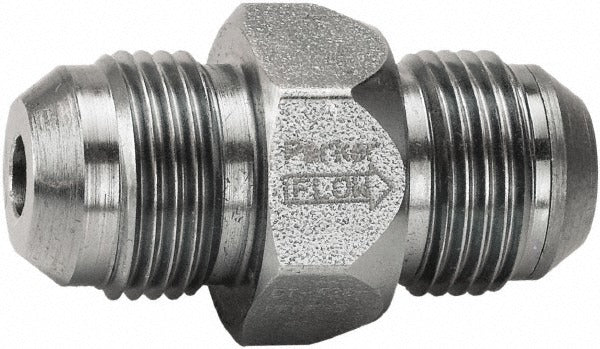

Parker DT-500-MFMF-5 Hydraulic Check Valve 15 Gpm

Product Description

The PARKER DT-500-MFMF-5 is a hydraulic control check valve designed to permit flow in one direction and prevent reverse flow in hydraulic circuits. Built with a steel body and metal seals, it handles a maximum working pressure of 4500 psi and a maximum flow rate of 15 GPM. The compact form factor measures 1.82 inches in overall length, 0.88 inches in width, and 0.88 inches in height, making it suitable for tight hydraulic plumbing runs. It connects via Male JIC threads on a 3/4-16 inlet. Hydraulic technicians and fluid power mechanics specify this valve when circuit integrity and backflow prevention are critical to system performance and safety.

The DT-500-MFMF-5 is used in industrial and mobile hydraulic systems where controlled, single-direction flow must be maintained. Typical applications include hydraulic power units, cylinder circuits, and manifold assemblies in both stationary and mobile equipment. The Male JIC thread standard makes it compatible with standard JIC hydraulic fittings common in commercial and industrial fluid power plumbing. Its all-steel construction and metal seal design make it suitable for high-cycle, high-pressure environments where elastomeric seals would degrade prematurely.

Key Features

• Maximum working pressure of 4500 psi for demanding hydraulic circuits
• Maximum flow rate of 15 GPM to match a wide range of hydraulic pump outputs
• Steel body construction for durability in industrial and mobile applications
• Metal seal material for compatibility with high-pressure, high-cycle service conditions
• Male JIC thread standard on 3/4-16 inlet for straightforward integration with standard hydraulic fittings
• Compact overall dimensions: 1.82 inches long, 0.88 inches wide, 0.88 inches tall

Compatibility

Designed as an OEM-style replacement or new-installation check valve for hydraulic circuits using Male JIC 3/4-16 threaded connections rated to 4500 psi maximum working pressure.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power mechanic. Depressurize and lock out the hydraulic system completely before removing any existing valve or fitting. Verify that the system operating pressure does not exceed the 4500 psi maximum working pressure rating of this valve. Ensure all mating JIC fittings are clean, free of debris, and properly torqued per the fitting manufacturer's specifications to prevent leaks under pressure.
