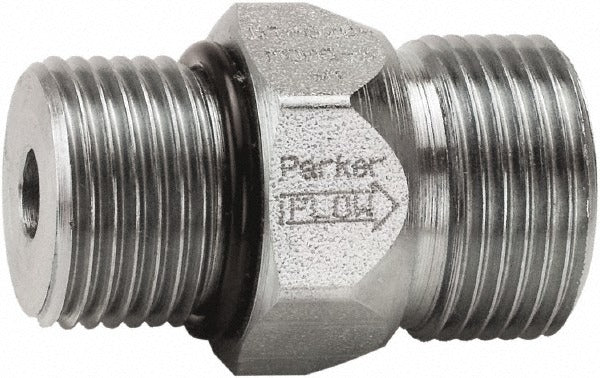

Parker DT-1500-MOMS-5 Hydraulic Check Valve 80 Gpm

Product Description

The PARKER DT-1500-MOMS-5 is a hydraulic control check valve designed for high-pressure fluid control in industrial and mobile hydraulic systems. It accepts flow up to 80 GPM at a maximum working pressure of 5,000 psi, making it suitable for demanding hydraulic circuits where reliable one-directional flow control is required. The valve features a 1-7/8-12 inlet with a Male ORB x Male Seal-Lok thread configuration and a steel body with metal seals for durability under sustained pressure and temperature cycling. Licensed hydraulic technicians and fluid power specialists are the primary installers of this component.

This check valve is used in industrial machinery, mobile equipment, and hydraulic power units where flow must be controlled and reverse flow prevented. Its compact envelope — 2.92 inches in overall length, 2.13 inches in width, and 2.13 inches in height — allows installation in space-constrained manifold or inline configurations. It is appropriate for both stationary industrial hydraulic systems and mobile applications where high-cycle duty and pressure integrity are essential.

Key Features

• Maximum flow rate of 80 GPM for high-volume hydraulic circuits
• 5,000 psi maximum working pressure for heavy-duty service
• 1-7/8-12 inlet thread with Male ORB x Male Seal-Lok configuration for leak-resistant connections
• Steel body construction for strength and resistance to hydraulic fluid environments
• Metal seal material for compatibility with high-pressure, high-temperature operating conditions
• Compact overall dimensions support installation in tight hydraulic assemblies

Compatibility

Designed as an OEM-style replacement or service component for hydraulic systems requiring a 1-7/8-12 Male ORB x Male Seal-Lok check valve rated to 5,000 psi and 80 GPM.

Installation Notes

Installation should be performed by a qualified fluid power technician or hydraulic system specialist. Depressurize and de-energize the hydraulic system completely before removing or installing any valve component. Ensure thread compatibility and apply appropriate thread sealant or confirm the ORB and Seal-Lok fittings are properly seated and torqued per the equipment manufacturer's specifications. Verify system pressure and flow ratings do not exceed the valve's rated maximums before returning the system to service.
