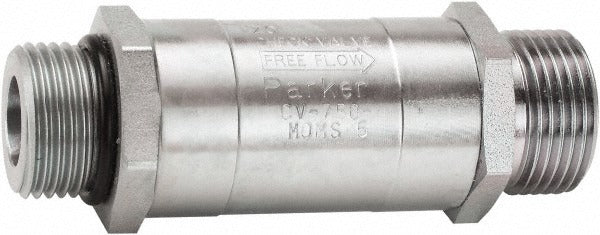

Parker CV-750-MOMS-5 Hydraulic Check Valve 65 Gpm

Product Description

The PARKER CV-750-MOMS-5 is a hydraulic control check valve designed to allow flow in one direction while preventing backflow in hydraulic circuits. Built from steel with a nitrile seal, it handles a maximum working pressure of 3,000 psi and supports flow rates up to 65 GPM. The inlet thread is 1-1/16-12 Male ORB and the outlet is 1-3/16-12 Male Seal-Lok. At 2.75 inches in overall length, 1.38 inches wide, and 1.38 inches tall, it fits into compact manifold and inline plumbing configurations. Licensed hydraulic technicians and fluid power mechanics typically install this valve in mobile and industrial equipment hydraulic systems.

This check valve is suited for use in high-pressure hydraulic circuits found in mobile equipment, industrial machinery, and power unit assemblies. It is installed inline to protect pumps, actuators, and other circuit components from reverse flow pressure spikes. The Male ORB inlet and Male Seal-Lok outlet thread configuration makes it compatible with standard SAE hydraulic fittings commonly used in North American fluid power systems. This part is sold individually with a minimum order quantity of one.

Key Features

• Maximum working pressure of 3,000 psi for high-pressure hydraulic circuit use
• 65 GPM maximum flow rate suitable for medium to high-flow applications
• Steel body construction for durability in demanding hydraulic environments
• Nitrile seal material provides resistance to petroleum-based hydraulic fluids
• 1-1/16-12 Male ORB inlet and 1-3/16-12 Male Seal-Lok outlet threading
• Compact envelope: 2.75 inches long, 1.38 inches wide, 1.38 inches tall

Compatibility

Designed as an OEM-style replacement or direct-fit component for hydraulic systems using SAE Male ORB and Male Seal-Lok threaded connections rated to 3,000 psi.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power mechanic. Depressurize and de-energize the hydraulic system fully before removing or installing any valve. Verify thread type and torque fittings to the system manufacturer specifications using calibrated tools. Inspect seal condition and ensure no contamination enters the system during assembly.
