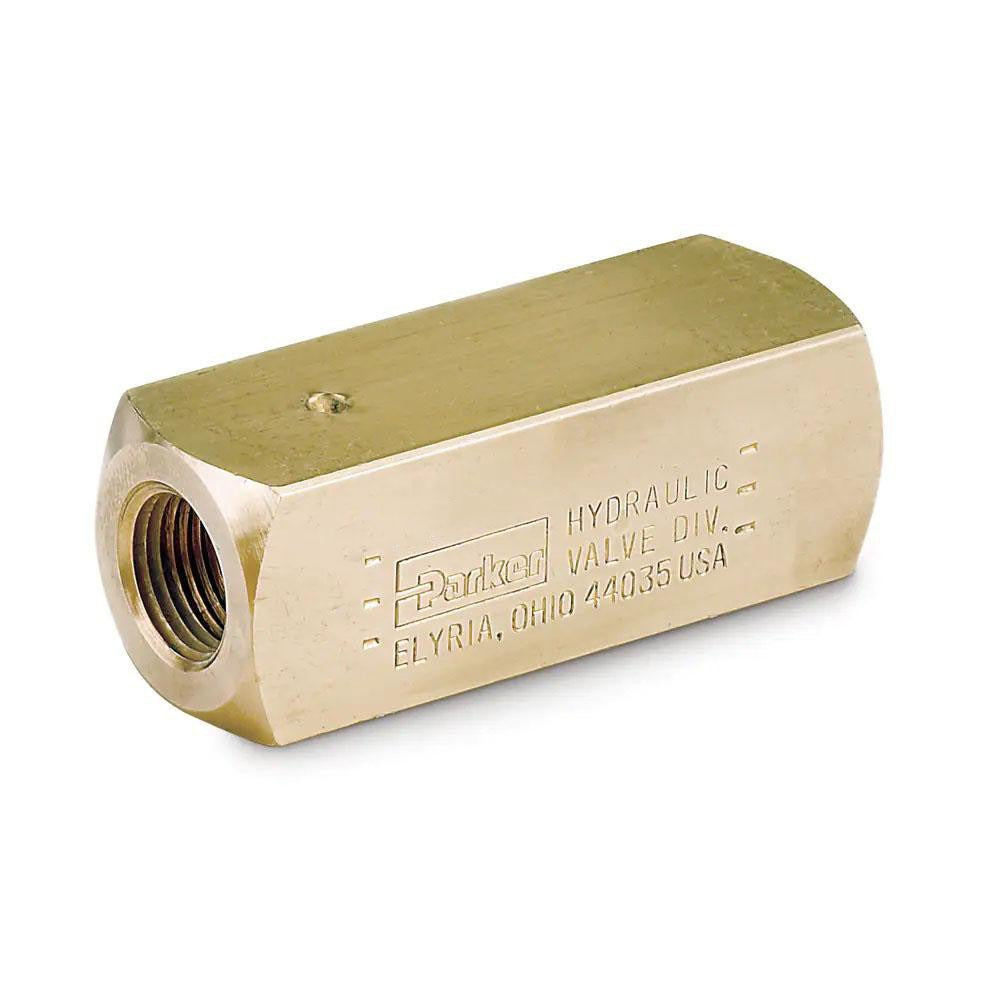

Parker C200S Hydraulic Control Valve 3 Gpm 5000 Psi

Product Description

The PARKER C200S is a one-way hydraulic control valve designed to regulate fluid flow in hydraulic systems. Built with a steel body and nitrile seals, this valve handles a maximum working pressure of 5000 psi and a maximum flow rate of 3 GPM. The 1/8-27 NPT threaded inlet fits standard hydraulic plumbing connections. At 2 inches overall length and 0.1 pounds, the C200S is compact enough for space-constrained installations. It is well suited for use in industrial, mobile, and stationary hydraulic circuits where controlled one-way flow is required. Licensed hydraulic technicians and fluid power mechanics are the primary installers of this component.

The PARKER C200S fits installations requiring a small-port, high-pressure flow control solution. The 1/8-inch NPT inlet size makes it appropriate for low-volume hydraulic lines operating within a 5000 psi pressure envelope. Typical applications include machine tool hydraulics, small actuator circuits, and compact power unit assemblies where precise one-way flow regulation is critical to system performance. The nitrile seal material is compatible with most standard petroleum-based hydraulic fluids used in these systems.

Key Features

• One-way flow regulation controls fluid direction in hydraulic circuits
• 5000 psi maximum working pressure supports high-pressure hydraulic systems
• 3 GPM maximum flow rate suits low-volume hydraulic line applications
• 1/8-27 NPT thread standard for compatibility with standard hydraulic fittings
• Steel body construction provides durability in demanding hydraulic environments
• Nitrile seals offer reliable performance with petroleum-based hydraulic fluids

Compatibility

Designed as an OEM-style hydraulic control valve for hydraulic circuits requiring a 1/8-27 NPT one-way flow control valve rated to 5000 psi.

Installation Notes

Installation should be performed by a qualified fluid power mechanic or hydraulic technician. Before servicing, depressurize the hydraulic system completely and verify that stored energy in accumulators is discharged. Use thread sealant appropriate for hydraulic service on NPT connections and avoid overtightening, which can crack the valve body. Verify that the system operating pressure does not exceed the 5000 psi rated maximum after installation.
