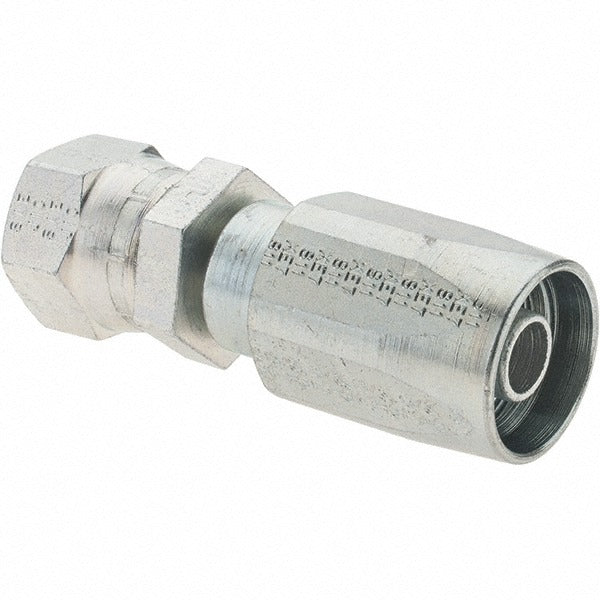

Parker BDKP72285 Reusable Female Swivel Fitting 3/4-16 Jic

Product Description

The PARKER BDKP72285 is a 5-piece reusable hose female swivel fitting designed for 3/4-16 JIC threaded connections. It accepts hose with a 13/32 inch inner diameter and a 1/2 inch outer diameter. The female swivel end allows rotation during assembly, reducing hose twist and torque stress at the connection point. This fitting is intended for hydraulic and fluid-transfer hose assemblies where a reusable, field-serviceable connection is required. HVAC technicians, plumbers, and hydraulic system mechanics install this type of fitting when building or repairing high-pressure hose runs.

This fitting is suited for use in hydraulic lines, refrigeration hose assemblies, and industrial fluid systems where JIC 37-degree flare thread standards apply. The reusable design allows the fitting to be removed from the hose and reinstalled without replacing the fitting body, making it practical for service environments where hose ends are periodically reconditioned. The 5-piece kit provides enough components to complete a full hose-end assembly in a single package.

Key Features

• 3/4-16 JIC threaded female swivel connection for secure, leak-resistant makeup
• Accepts 13/32 inch hose ID and 1/2 inch hose OD
• Reusable design allows field disassembly and reinstallation without replacing the fitting
• Swivel end reduces hose twist during installation and routing
• 5-piece kit packaged in a quantity of 2 per package
• Threaded connection type compatible with standard JIC 37-degree flare fittings

Compatibility

Designed as an OEM-style reusable replacement fitting for hydraulic and fluid-transfer hose assemblies using 3/4-16 JIC threaded connections with 13/32 inch ID hose.

Installation Notes

Installation should be performed by a qualified mechanic or technician familiar with hydraulic hose assembly practices. Depressurize and isolate the hydraulic or fluid circuit completely before removing any existing fittings. Use proper hose-assembly tooling to seat the fitting components correctly within the hose. Inspect the hose cut end for squareness and confirm the hose OD is within specification before assembly to ensure a leak-free connection.
