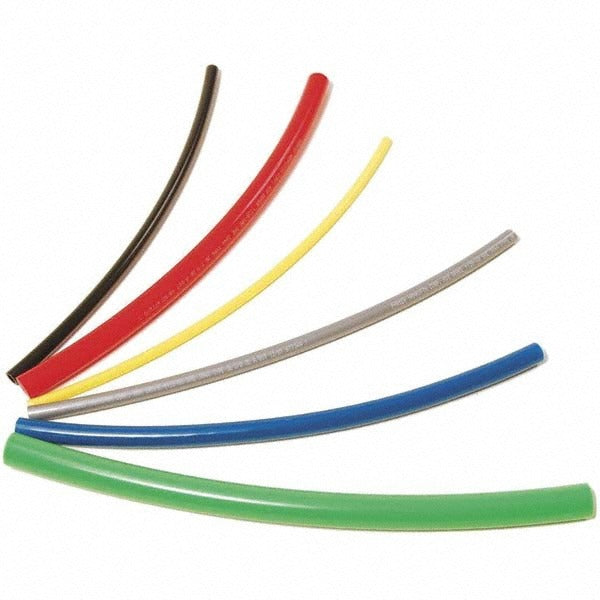

Parker BD10859 Nylon Tube 1/4 Inch Od 200 Ft Black 150 Psi

Product Description

The PARKER BD10859 is a black nylon pneumatic and fluid transfer tube supplied in a 200-foot coil. It features an inside diameter of 0.17 inches and an outside diameter of 0.25 inches, with a maximum working pressure rating of 150 psi. The tube is rated for a temperature range of -40 degrees F to 200 degrees F, making it suitable for both refrigerated and heated system environments. It is commonly used in pneumatic control lines, instrument air supply runs, and low-pressure fluid transfer applications. Installation is typically performed by HVAC technicians, plumbers, and industrial mechanics.

This nylon tube is well suited for residential and light commercial applications where a flexible, lightweight tubing solution is needed for pneumatic controls, compressed air lines, or chemical-resistant fluid transfer. The 200-foot coil length allows for extended runs without field splices. Its black color provides UV resistance compared to natural nylon options, making it a practical choice for exposed or semi-exposed routing in mechanical rooms and rooftop installations.

Key Features

• 0.17 inch inside diameter and 0.25 inch outside diameter for standard 1/4 inch pneumatic fittings
• 150 psi maximum working pressure suitable for instrument air and low-pressure pneumatic control lines
• Wide service temperature range: -40 degrees F to 200 degrees F
• Black nylon construction offers good chemical resistance and flexibility
• 200-foot coil minimizes field splices on longer runs

Compatibility

Designed as a general-purpose replacement or new-installation nylon tube compatible with standard 1/4 inch OD push-to-connect and compression fittings used in pneumatic control and fluid transfer systems.

Installation Notes

Installation is typically performed by licensed HVAC technicians or qualified mechanical contractors working on pneumatic control systems. Depressurize and isolate the line before cutting or connecting the tube. Use a clean, square cut to ensure a proper seal at push-to-connect or compression fittings. Avoid bending the tube below its minimum bend radius to prevent kinking and flow restriction.
