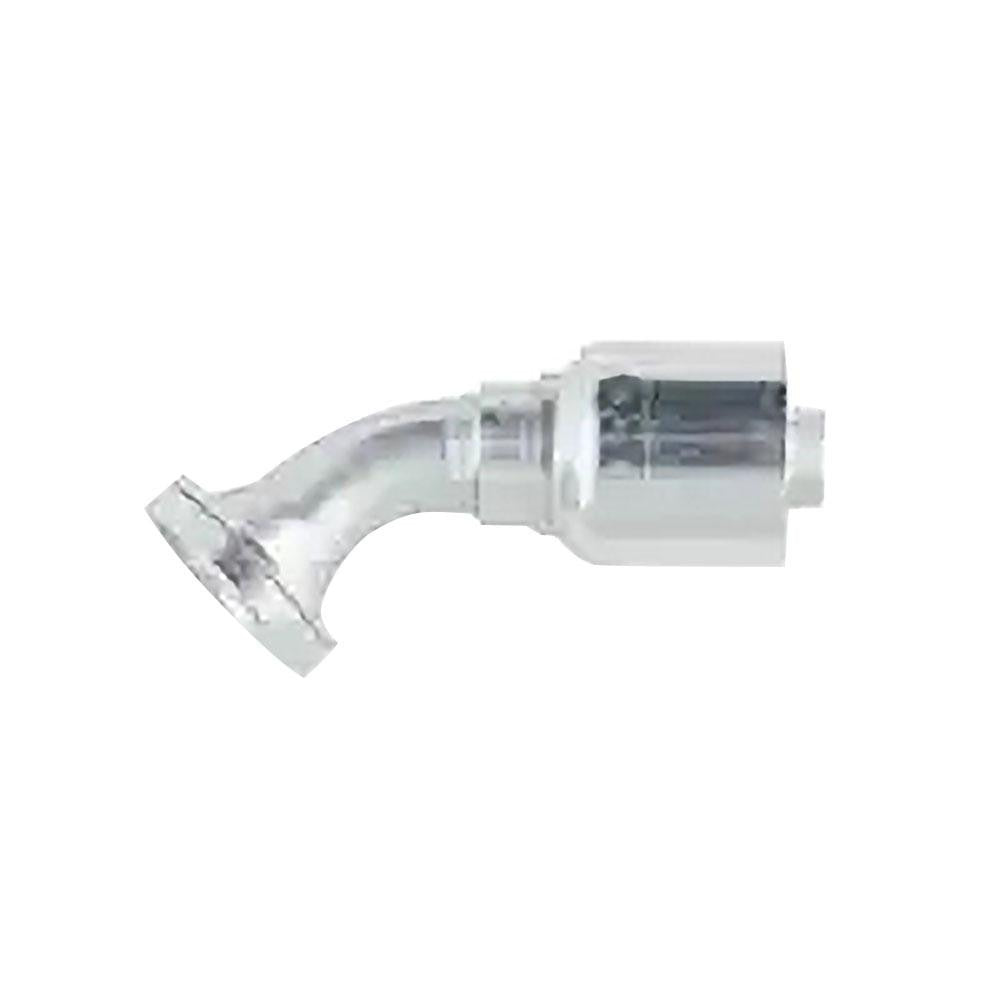

Parker BD-PP-00570 Hydraulic Hose Fitting 45 Degree Elbow

Product Description

The PARKER BD-PP-00570 is a 45-degree elbow hydraulic hose fitting designed for use in high-pressure hydraulic plumbing systems. Constructed from steel with a threaded SAE connection, this fitting accepts hoses with a 0.75 inch inside diameter and a 3/4 inch thread size. The 45-degree elbow geometry allows for directional changes in hose routing where straight fittings will not fit or where bend radius limitations require an angled approach. It is installed by hydraulic technicians, mobile equipment mechanics, and industrial maintenance professionals working on fluid power systems requiring reliable, leak-resistant connections.

This fitting is suited for use in industrial and mobile hydraulic systems where space constraints or routing requirements call for a 45-degree transition. Per manufacturer specifications, it is compatible with Parker 387 TC ST, 487 TC ST, 787 TC ST, and 797 TC ST hydraulic hose series. Typical applications include construction equipment, agricultural machinery, and stationary hydraulic power units where a compact, angled hose end is required at the connection point.

Key Features

• 45-degree elbow geometry for angled hose routing in tight spaces
• Steel construction for durability in high-pressure hydraulic service
• Threaded SAE connection type for standard hydraulic system compatibility
• 0.75 inch (12 mm) hose inside diameter sizing
• Meets ISO 12151-3-E45M-S standards
• California PROP 65 compliant

Compatibility

Rated for use with Parker 387 TC ST, 487 TC ST, 787 TC ST, and 797 TC ST hose series. Hose inside diameter is 0.75 inches; thread size is 3/4 inch SAE.

Installation Notes

Installation should be performed by a qualified hydraulic technician or industrial mechanic familiar with fluid power systems. Depressurize and fully de-energize the hydraulic circuit before removing or installing any fittings. Use appropriate thread sealant or SAE O-ring face seal methods as required by system design. Verify hose series compatibility before installation to ensure a leak-free, rated connection.
