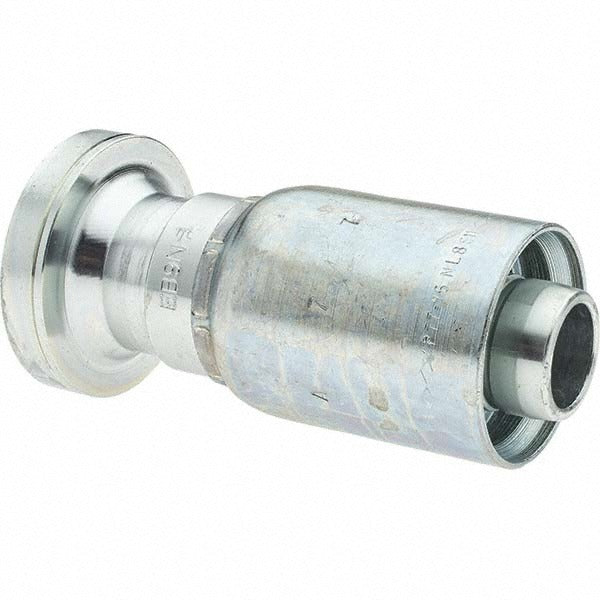

Parker BD-PP-00568 Code 62 Straight Hose Fitting 1 in

Product Description

The PARKER BD-PP-00568 is a Code 62 straight hydraulic hose fitting designed for high-pressure hydraulic plumbing applications. Built from steel with a threaded SAE connection, this fitting accommodates a 1-inch inside diameter hose and uses a 1-1/4-inch thread size. The straight configuration simplifies in-line connections between hose assemblies and hydraulic components. At 4.05 inches overall length, it delivers a compact, reliable interface suited for mobile equipment, industrial machinery, and fluid-power systems. Licensed hydraulic technicians and industrial maintenance crews install this type of fitting as part of larger hose assembly work.

This fitting is designed for use with Parker Series 77 hydraulic hose assemblies, specifically the 387 TC ST, 487 TC ST, 787 TC ST, and 797 TC ST hose series. These are multi-spiral and wire-braid hose constructions commonly found in heavy mobile equipment, agricultural machinery, and industrial fluid-power circuits operating at elevated working pressures. The straight Code 62 geometry suits applications where a direct axial hose-to-port connection is preferred over angled or swivel-style fittings.

Key Features

• Code 62 straight fitting configuration for in-line hydraulic plumbing
• 1-inch hose inside diameter, compatible with 16 mm nominal hose size
• 1-1/4-inch SAE threaded connection for secure, leak-resistant interface
• Steel construction for durability in high-pressure hydraulic environments
• Overall length of 4.05 inches (102.90 mm) for compact installation
• Meets ISO 12151-3-S-S standard and California Proposition 65 compliance requirements

Compatibility

Designed for use with Parker 387 TC ST, 487 TC ST, 787 TC ST, and 797 TC ST hoses in Series 77 hydraulic hose assemblies.

Installation Notes

Hydraulic fittings of this type are installed by qualified hydraulic technicians or industrial maintenance personnel. Depressurize and bleed down the hydraulic system fully before removing or installing any fitting. Inspect the mating thread and sealing surfaces for damage before assembly. Follow applicable fluid-power safety standards and equipment manufacturer torque guidance for threaded hydraulic fittings.
