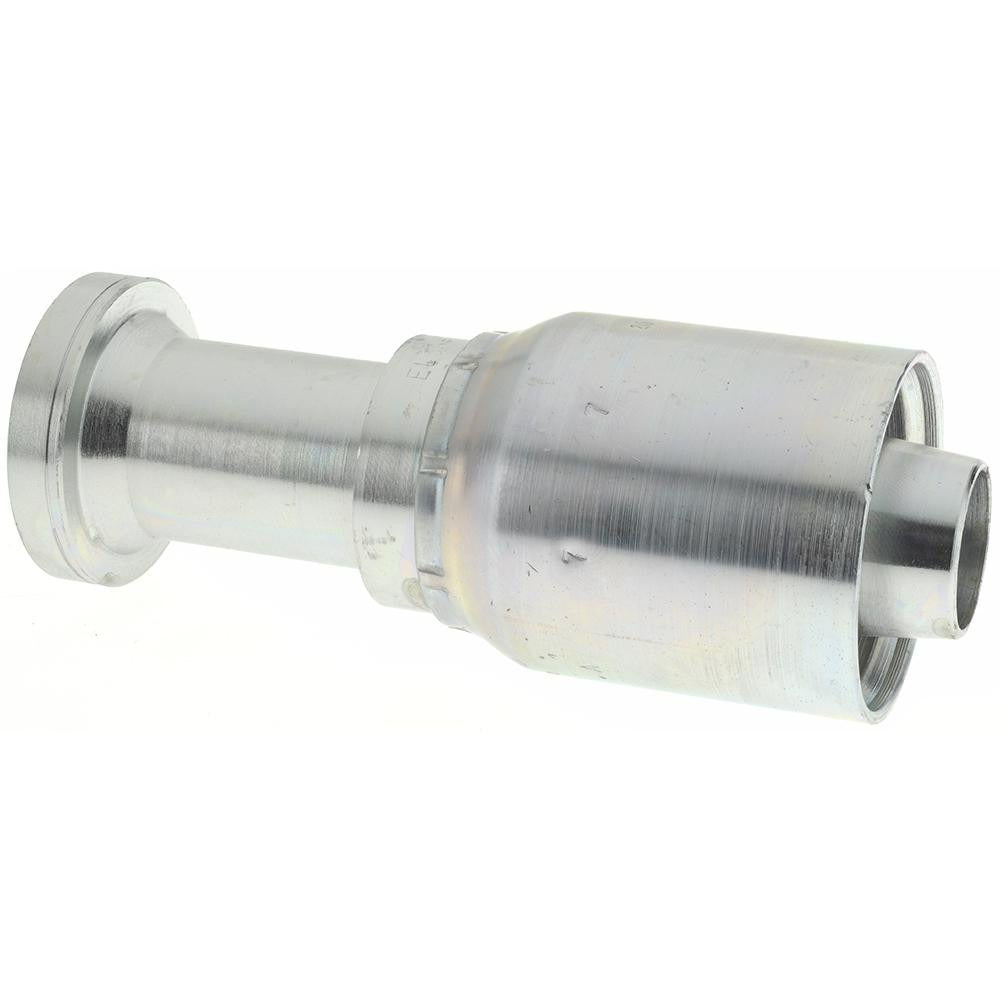

Parker BD-16A7716-16-1 Code 62 Straight Hose Fitting

Product Description

The PARKER BD-16A7716-16-1 is a Code 62 straight flanged hydraulic hose fitting designed for high-pressure hydraulic systems. Built from steel and conforming to SAE shaft-type standards, this Series 77 fitting accepts a 1-inch inside diameter hose and delivers a secure, leak-resistant flanged connection. It meets ISO 12151-3-S-S, making it appropriate for demanding fluid power applications. The overall length is 4.45 inches. Hydraulic technicians and fluid power specialists will recognize this as a precision-machined SAE-spec component suited for demanding mobile and industrial hydraulic circuits.

This fitting is specified for use with Parker 787TC and 797TC hydraulic hose. It is suited to both mobile equipment and stationary industrial hydraulic installations where a Code 62 four-bolt flange connection is required. The straight configuration simplifies routing in tight plumbing runs. At a 1-inch hose size (16 mm nominal), it handles line sizes common in mid- to high-flow hydraulic circuits found on heavy equipment, loaders, and industrial machinery.

Key Features

• Code 62 straight flanged connection type per ISO 12151-3-S-S
• 1-inch inside diameter hose acceptance, 16 mm nominal hose size
• Steel construction for high-pressure hydraulic service
• SAE shaft type, Series 77 fitting family
• Overall length of 4.45 inches for predictable layout planning
• Single-piece unit — sold individually (package quantity of 1)

Compatibility

Designed for use with Parker 787TC and 797TC hydraulic hose at 1-inch inside diameter (16 mm nominal hose size).

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power specialist. Depressurize and bleed the hydraulic system completely before removing or installing any fittings. Inspect the flange sealing face and O-ring groove for nicks or contamination before assembly. Torque all four flange bolts evenly in a cross pattern to the hose and fitting manufacturer specifications — do not rely on feel alone for high-pressure flanged joints.
