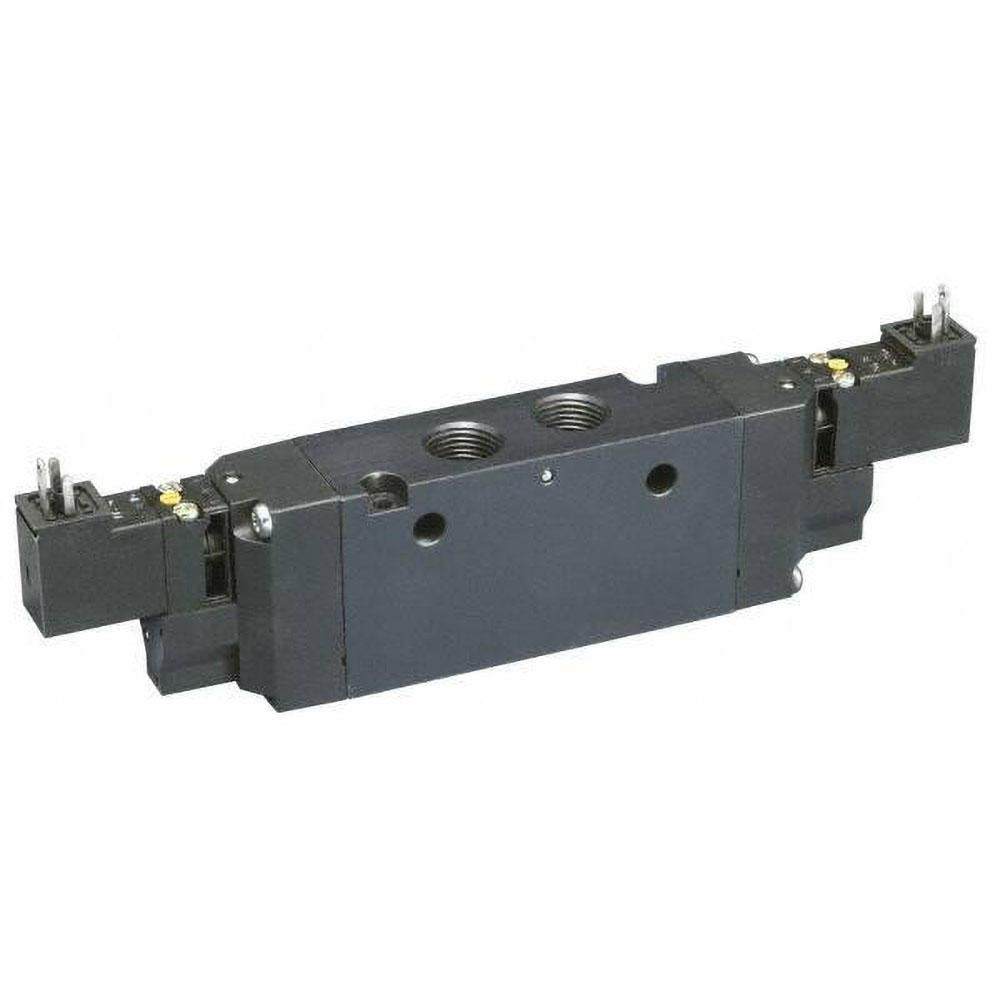

Parker B753BB549A Stacking Solenoid Valve 4-way 24V

Product Description

The PARKER B753BB549A is a stacking solenoid valve designed for directional control of pneumatic or hydraulic flow in industrial and commercial systems. Configured as a 4-way, 3-position, double solenoid valve with solenoid return, it controls the extension and retraction of actuators in automated machinery and fluid-power circuits. It operates on 24 VDC and carries a Cv rating of 5.7, indicating the flow capacity through the valve body. Both inlet and outlet ports are 1/2 inch, and the valve meets NEMA 4 enclosure requirements for protection against water and dust ingress. Licensed industrial mechanics and fluid-power technicians are the typical installers.

This valve is suited for use in industrial automation, process control, and fluid-power systems where a 3-position, body-ported directional control valve is required. The solenoid return configuration allows each solenoid to shift the spool independently to one of two active positions, with the third position held by the opposing solenoid. Typical applications include cylinder control, hydraulic or pneumatic circuit switching, and machine tool systems operating within the rated temperature and pressure range. It is built for environments where NEMA 4 ingress protection is a requirement.

Key Features

• 4-way, 3-position body-ported valve design for directional flow control
• Double solenoid actuation with solenoid return on each side
• Cv rating of 5.7 for defined flow capacity
• 24 VDC operating voltage
• NEMA 4 rated enclosure for protection in wet or dusty environments
• 1/2 inch inlet and outlet port sizing

Compatibility

Designed as an OEM-style replacement or upgrade for stacking solenoid valve assemblies requiring a 4-way, 3-position, double solenoid configuration with 1/2 inch body-ported connections and 24 VDC coils.

Installation Notes

Installation should be performed by a qualified fluid-power technician or industrial mechanic. De-energize the electrical circuit and depressurize the system fully before removing or installing the valve. Verify that the supply voltage matches the 24 VDC coil rating before energizing. Follow applicable machine safety standards and the equipment manufacturer's wiring and mounting procedures.
