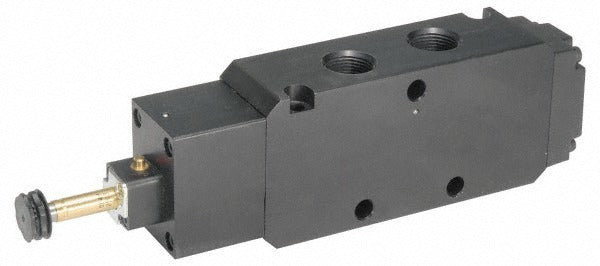

Parker B713BCNXXA Solenoid Valve 1/2 Inch 2-position

Product Description

The PARKER B713BCNXXA is a single-solenoid, 2-position directional control valve designed for pneumatic and fluid control applications in industrial and commercial systems. It features a 1/2 inch port size, an aluminum body, and a Buna-N seal. In its unactuated state, flow passes normally open through ports 1 and 2. This valve ships without a solenoid coil, which must be sourced and installed separately. The valveless coil configuration allows technicians to select the appropriate coil for their voltage and connector requirements. Operating pressure range runs from 35 psi to 145 psi, with a maximum working temperature of 120 degrees F. Licensed industrial mechanics and fluid power technicians are the typical installers.

This valve is suited for use in pneumatic directional control circuits where a normally open, 2-position flow path is required. It fits applications in manufacturing, HVAC controls, process automation, and similar industrial environments. The 1/2 inch port size accommodates moderate flow rates, reflected in the Cv factor of 5.9 in the normally closed position. It is appropriate for both new installations and replacement service on existing valve manifolds where the valveless coil design is already in use.

Key Features

• Single solenoid, 2-position valveless coil design for flexible coil selection
• Normally open through ports 1 and 2 in the unactuated state
• 1/2 inch port size with a Cv factor of 5.9
• Working pressure range: 35 psi to 145 psi
• Aluminum body with Buna-N seal for durability in standard pneumatic service
• Solenoid coil not included — must be ordered separately

Compatibility

Designed as an OEM-style directional control valve for industrial pneumatic systems requiring a 2-position, single-solenoid, normally open configuration with a 1/2 inch port. Confirm coil compatibility before ordering, as coils are not included with this valve body.

Installation Notes

Installation should be performed by a qualified fluid power technician or industrial mechanic. De-energize and depressurize the system fully before removing or installing the valve. Verify that the separately sourced solenoid coil matches the circuit voltage and connector style before assembly. Refer to applicable industry standards and the system manufacturer's documentation for mounting orientation and port identification.
