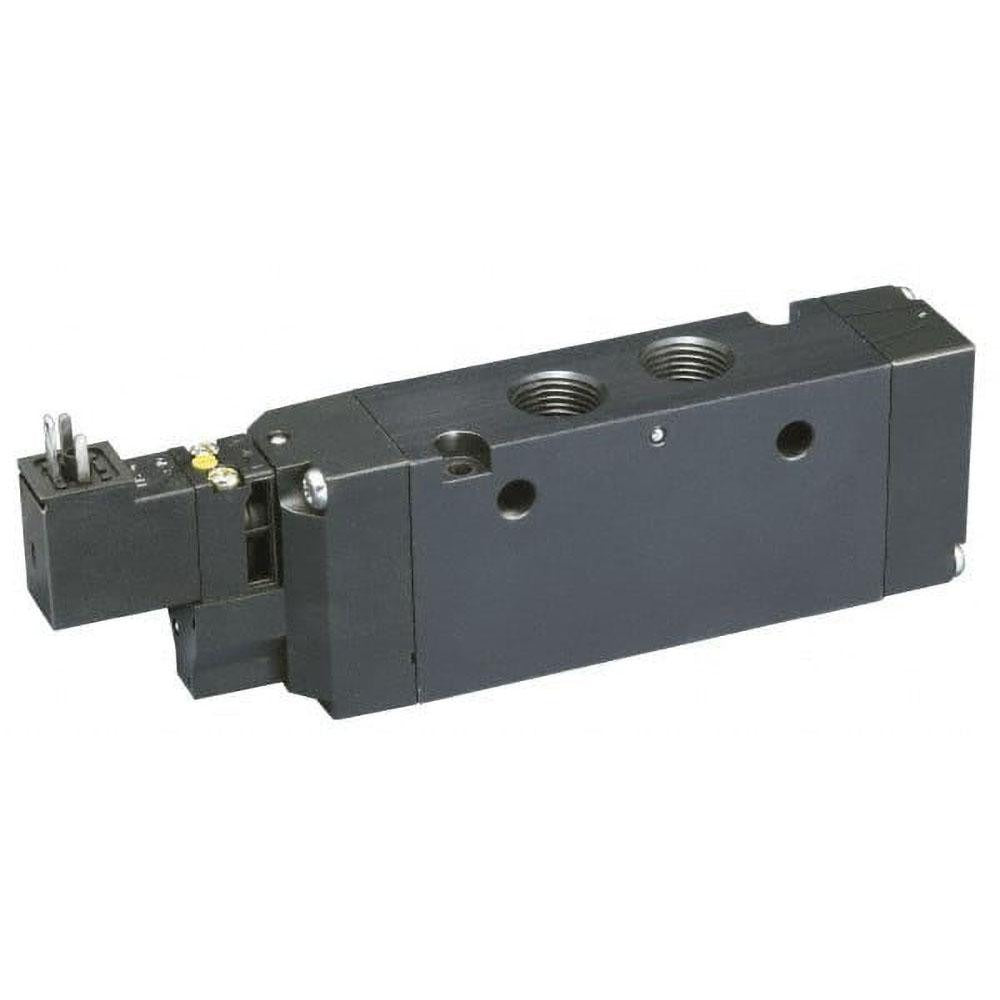

Parker B713BB549A Stacking Solenoid Valve 4-way 24VDC

Product Description

The PARKER B713BB549A is a 4-way, 2-position stacking solenoid valve designed for pneumatic directional control applications. It uses a single solenoid actuator with air return to shift between positions, delivering a Cv rating of 5.9 for reliable flow capacity. Rated at 24 volts DC and built to NEMA 4 standards, this valve handles working pressures up to 145 psi and operates across a temperature range of 5 degrees F to 120 degrees F. It is installed by pneumatic system technicians and industrial maintenance professionals in compressed-air circuit assemblies where directional control of actuators or cylinders is required.

The B713BB549A is suited for use in pneumatic control panels and stacking valve manifold assemblies where modular construction is required. The 1/2-inch inlet and 1/2-inch outlet port sizes accommodate medium-flow compressed-air circuits. Its 4-way body-ported design makes it appropriate for double-acting cylinder control or similar directional switching tasks in light industrial, process automation, and facility maintenance environments.

Key Features

• 4-way, 2-position directional control with single solenoid and air return actuation
• Cv rating of 5.9 for consistent flow capacity in medium-duty pneumatic circuits
• 24 volt DC coil voltage for compatibility with standard PLC and control system outputs
• NEMA 4 enclosure rating for use in wet or wash-down-adjacent environments
• 1/2-inch inlet and outlet ports for straightforward manifold or inline installation
• Maximum working pressure of 145 psi with an operating temperature range of 5 degrees F to 120 degrees F

Compatibility

Designed as an OEM-style directional control valve for use in stacking pneumatic manifold assemblies requiring 4-way, 2-position single-solenoid air-return valves with 1/2-inch body-ported connections.

Installation Notes

Installation should be performed by a qualified pneumatic systems technician or industrial maintenance professional. Depressurize and de-energize the pneumatic circuit completely before removing or installing any solenoid valve. Verify that supply voltage matches the 24 volt DC coil rating before energizing. Follow applicable NFPA and local compressed-air system codes when integrating into a control panel or manifold stack.
