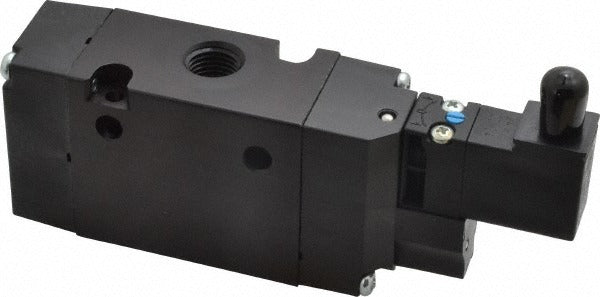

Parker B5G1BB549C Stacking Solenoid Valve 3-way 24VDC

Product Description

The PARKER B5G1BB549C is a stacking solenoid valve configured as a 3-way, 2-position, body-ported valve with a single solenoid and air return actuation. It operates at 24 volts DC and carries a Cv rating of 1.4, making it suited for moderate-flow pneumatic circuit control. At 2.4 inches tall and 5.29 inches in length, it is designed for compact manifold assemblies where space and stackability matter. NEMA 4 enclosure classification means the solenoid housing resists washdown and water ingress. Licensed automation technicians and industrial pneumatic specialists are the primary installers of this valve in factory and process control environments.

This valve is used in pneumatic control systems where a single solenoid with spring-air return is required to shift a 3-way circuit between two discrete positions. Typical applications include actuator control, cylinder sequencing, and directional air circuit management in light industrial, manufacturing, and automated assembly systems. The body-ported design supports direct manifold stacking, reducing plumbing runs and simplifying panel layouts. Working pressure range extends from atmospheric up to 145 psi, and operating temperature is rated from 5 degrees F to 120 degrees F, covering most standard indoor industrial service conditions.

Key Features

• 3-way, 2-position body-ported valve design supports manifold stacking configurations
• Single solenoid with air return for fail-safe directional control in pneumatic circuits
• 24 VDC coil voltage for compatibility with standard PLC and low-voltage control systems
• Cv rating of 1.4 for consistent moderate-flow pneumatic performance
• NEMA 4 rated enclosure resists water ingress and washdown conditions
• Maximum working pressure of 145 psi with operating temperatures from 5 degrees F to 120 degrees F

Compatibility

Designed as an OEM-style replacement or new-installation component for stacking pneumatic manifold systems requiring a 3-way, 2-position, single solenoid valve with 1/4-inch inlet and outlet porting and 24 VDC actuation.

Installation Notes

Installation should be performed by a qualified automation or pneumatic systems technician. Depressurize and isolate the pneumatic circuit completely before removing or installing any valve. Verify that the supply voltage matches the 24 VDC coil rating before energizing. Consult applicable NFPA and local automation codes for manifold assembly and electrical connection requirements.
