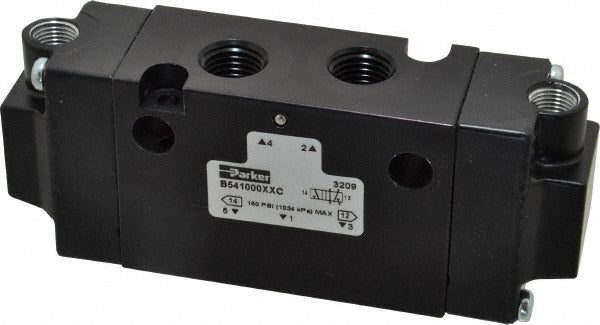

Parker B541000XXC Stacking Solenoid Valve 4-way

Product Description

The PARKER B541000XXC is a 4-way, 2-position stacking solenoid valve actuated by a double air pilot with pilot return. It is designed for directional control of compressed air or other compatible gases in pneumatic circuits. The valve carries a Cv rating of 1.400 and accepts a wide range of supply voltages, including 12 VDC, 24 VDC, 240 VDC, 120 VAC, and 24 VAC. With a 1/4-inch inlet and 1/4-inch outlet, it fits compact manifold assemblies. Licensed pneumatic technicians and industrial maintenance professionals typically specify and install this valve in automated equipment and process control systems.

This valve is suited for use in light industrial and commercial pneumatic systems where space-saving manifold stacking is required. The body-ported, 4-way design makes it appropriate for controlling double-acting cylinders and similar actuators. Its NEMA 4 rating allows installation in environments where wash-down or moisture exposure is a concern. The wide voltage compatibility reduces the need for external signal conditioning in mixed-voltage control panels.

Key Features

• Double air pilot actuation with pilot return for reliable, positive switching
• Cv rating of 1.400 for consistent flow performance in compact pneumatic circuits
• Accepts five voltage options: 12 VDC, 24 VDC, 240 VDC, 120 VAC, and 24 VAC
• NEMA 4 rated enclosure for use in wet or wash-down environments
• 1/4-inch inlet and outlet ports for straightforward manifold integration
• Maximum working pressure of 145 psi (10.00 bar) suits most industrial pneumatic lines

Compatibility

Designed as an OEM-style replacement or new-installation component for 4-way, 2-position stacking solenoid valve manifold assemblies requiring a double air pilot, pilot return configuration with 1/4-inch body-ported connections.

Installation Notes

Installation should be performed by a qualified pneumatic or industrial controls technician. Depressurize the pneumatic line and de-energize all electrical circuits before servicing or replacing this valve. Verify that the control circuit voltage matches one of the rated supply voltages before wiring. Consult applicable NFPA and local codes for pneumatic system installation requirements.
