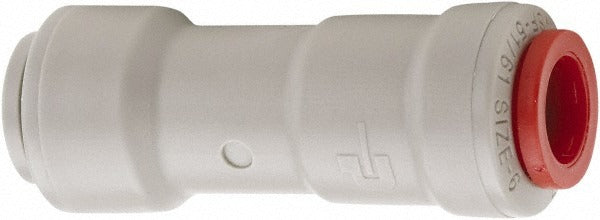

Parker A8VC8-MG Inline Check Valve Push-to-connect 150 Psi

Product Description

The PARKER A8VC8-MG is an inline check valve with push-to-connect fittings on both ends, designed to allow one-directional fluid flow and prevent backflow in fluid handling and distribution systems. The body is constructed from acetal with an EPDM seal, rated for a maximum working pressure of 150 psi and a temperature range of 34 degrees F to 150 degrees F. A low crack pressure of 0.33 psi allows the valve to open with minimal upstream pressure. It meets NSF/ANSI 51 and NSF/ANSI 61 standards, making it suitable for food equipment and potable water applications. Licensed plumbers and fluid system technicians are the typical installers.

This check valve is used in residential and light commercial fluid distribution systems where backflow prevention is required at a tubing connection point. The push-to-connect design eliminates the need for threaded fittings or compression tools, making it a practical choice for inline installation in tight spaces or retrofit applications. It is compatible with 1/2-inch outside diameter tubing. Its NSF/ANSI 61 listing makes it appropriate for potable water systems, and its NSF/ANSI 51 listing covers food equipment fluid circuits.

Key Features

• Push-to-connect on both ends accepts 1/2-inch OD tubing without tools or thread sealant
• Low crack pressure of 0.33 psi opens with minimal upstream flow demand
• Acetal body offers chemical resistance and lightweight construction
• EPDM seal provides reliable performance across the rated temperature range
• NSF/ANSI 51 and NSF/ANSI 61 certified for food equipment and potable water service
• Rated to 150 psi maximum working pressure

Compatibility

Designed for inline installation in fluid systems using 1/2-inch outside diameter push-to-connect tubing where a backflow-prevention check valve is required.

Installation Notes

Installation should be performed by a licensed plumber or qualified fluid systems technician in accordance with applicable local plumbing codes. Shut off the water supply and depressurize the line before installing or removing the valve. Ensure tubing ends are cut cleanly and squarely and are fully seated into the push-to-connect fittings before restoring pressure. Verify flow direction arrow on the valve body is oriented with system flow direction prior to pressurizing.
