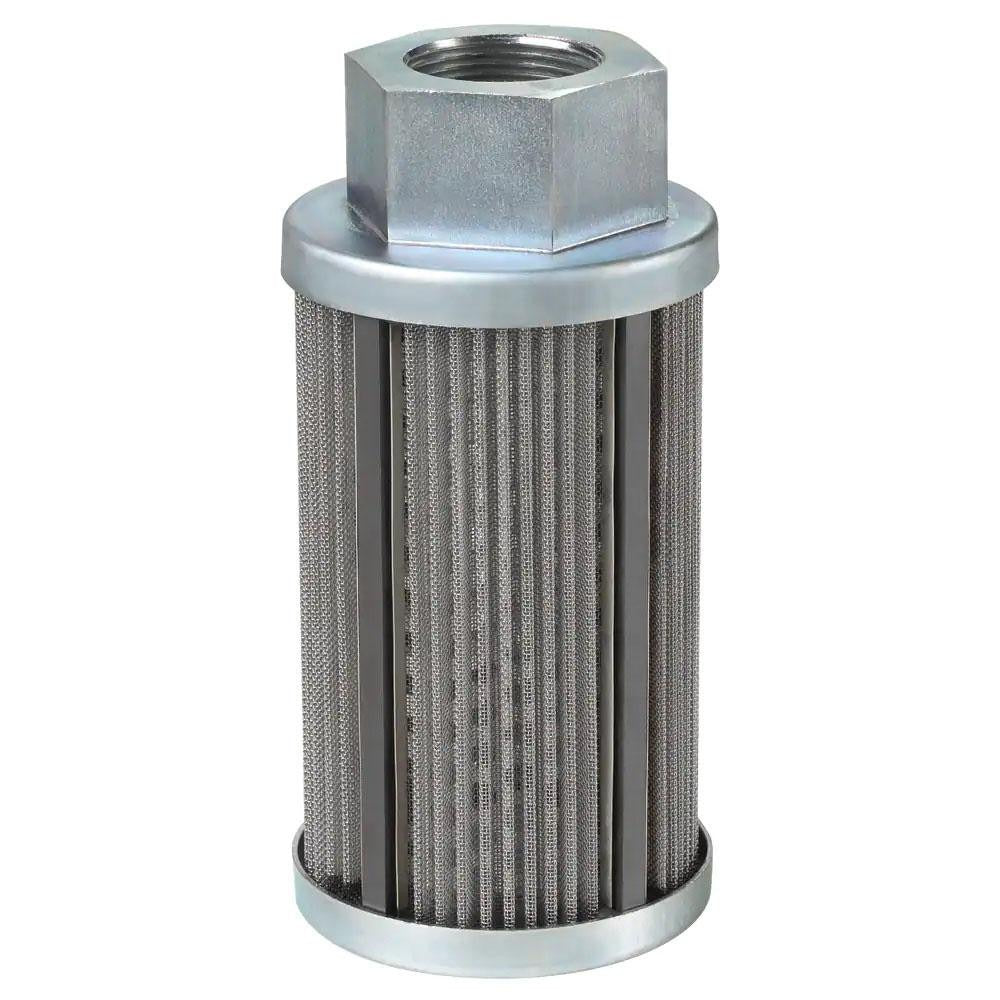

Parker 936547 Magnetic Suction Strainer 15 Gpm 30 Mesh Npt

Product Description

The PARKER 936547 is a magnetic suction strainer designed to protect hydraulic and fluid system components by capturing ferrous particles and debris before they reach pumps and valves. Built with a 30-mesh stainless steel screen and an integrated magnet, the strainer handles a maximum flow rate of 15 GPM (55 LPM) and measures 3.09 inches in diameter and 5.19 inches in length. It uses a 1-inch NPT connection with both male and female ports for straightforward in-line installation. Hydraulic technicians and fluid power specialists install this strainer on suction lines where contamination control is critical to system reliability.

The PARKER 936547 is suited for hydraulic suction line applications in industrial and mobile equipment systems. Its threaded NPT connection makes it compatible with standard plumbing and hydraulic fittings. The strainer is rated for a maximum working temperature of 195 degrees F (90 degrees C), making it appropriate for both ambient and elevated-temperature fluid environments. It carries no bypass valve, so maintaining clean screens and following recommended service intervals is essential to avoiding flow restriction.

Key Features

• Integrated magnet captures ferrous metal particles that pass through the mesh screen
• 30-mesh stainless steel screen provides durable mechanical filtration
• Maximum flow rate of 15 GPM (55 LPM) supports typical suction line sizing
• 1-inch NPT threaded connection with male and female ports for flexible installation
• Rated to 195 degrees F for use in higher-temperature fluid systems
• No bypass valve — direct-flow design requires routine inspection and cleaning

Compatibility

Designed as an OEM-style replacement or new-installation suction strainer for hydraulic and fluid power systems using 1-inch NPT threaded connections.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power specialist. Depressurize and drain the suction line completely before removing or installing the strainer. Use thread sealant appropriate for hydraulic service on the NPT threads and torque to fitting manufacturer specifications. Because this strainer has no bypass, inspect and clean the screen at regular service intervals to prevent flow starvation to the pump.
