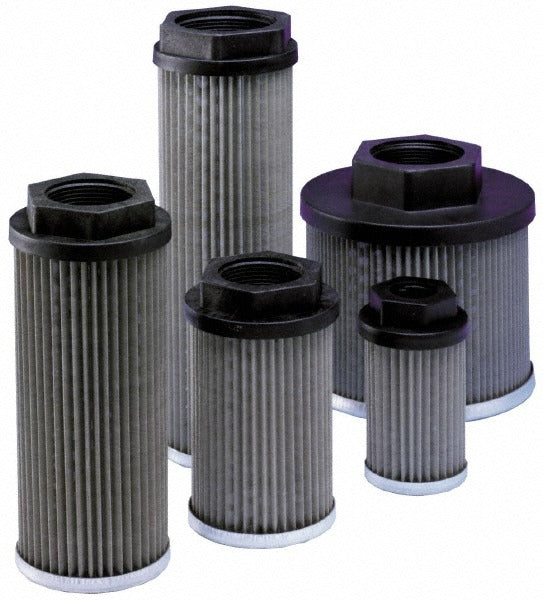

Parker 935191 Hydraulic Filter Element 2 Micron

Product Description

The PARKER 935191 is a microglass hydraulic filter element rated at 2 microns, designed to remove fine particulate contamination from hydraulic fluid circuits. At 1 inch inside diameter and 2 inches outside diameter, this element fits into compatible filter housings used across industrial and mobile hydraulic systems. The microglass media construction provides high dirt-holding capacity and consistent filtration efficiency compared to standard cellulose media. Installation is performed by hydraulic system technicians during routine maintenance or when system cleanliness levels require correction.

This filter element is suited for use in hydraulic power units, industrial machinery, and mobile equipment where tight fluid cleanliness specifications must be maintained. The 2-micron rating makes it appropriate for systems with sensitive servo valves, proportional valves, or other precision hydraulic components that require low contamination levels. It is sold and packaged as a single unit.

Key Features

• 2-micron filtration rating for fine particulate removal in demanding hydraulic circuits
• Microglass filter media for improved dirt-holding capacity over cellulose alternatives
• 1 inch inside diameter and 2 inches outside diameter for housing compatibility
• Direct replacement for Pall part number HC9801FDP4H and Vickers part number V6014V1H03
• Single-element packaging with no minimum order multiplier above one unit

Compatibility

Serves as a direct replacement for Pall part number HC9801FDP4H and Vickers part number V6014V1H03. Designed to fit hydraulic filter housings accepting a 1 inch ID by 2 inch OD element configuration.

Installation Notes

Hydraulic filter elements are replaced by qualified hydraulic technicians or maintenance personnel. Depressurize and de-energize the hydraulic system fully before opening any filter housing. Contain and properly dispose of residual hydraulic fluid during element changeout. Follow the equipment manufacturer service interval and housing torque specifications outlined in the system service manual.
