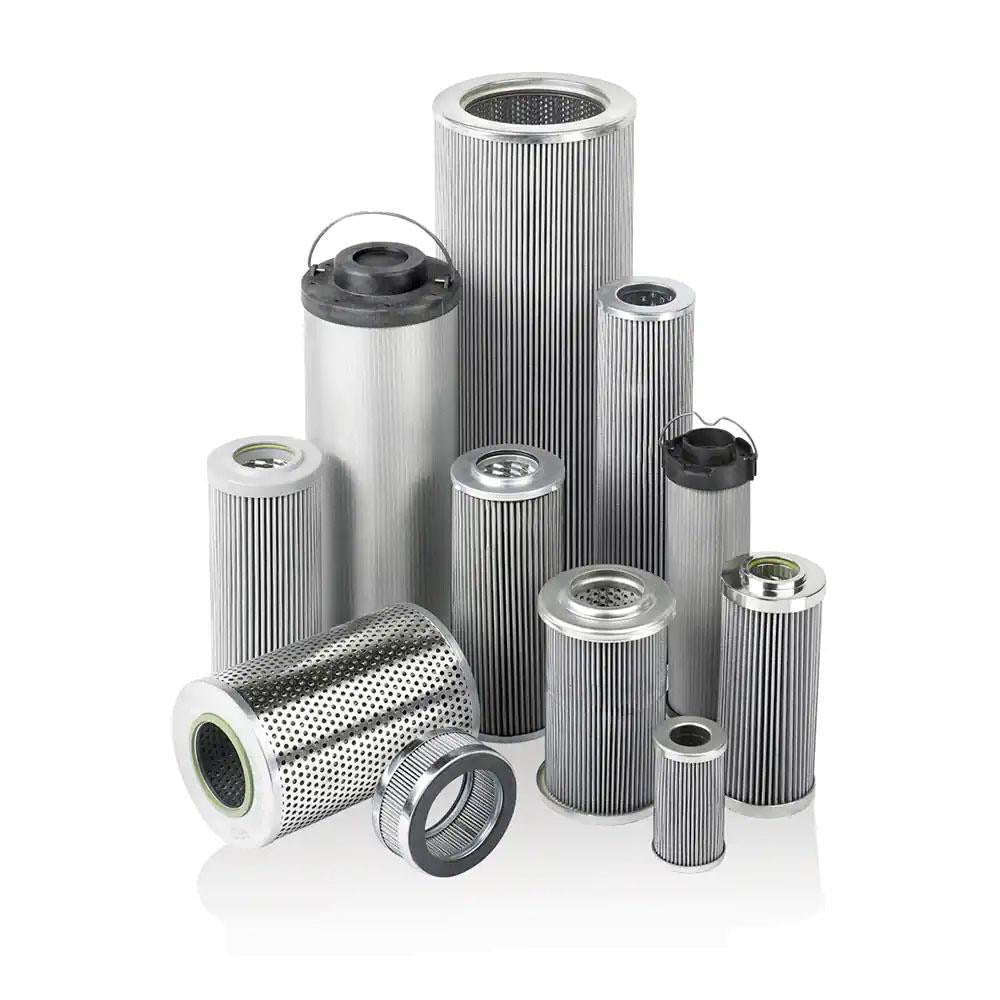

Parker 933246Q Hydraulic Filter Element 5 Micron

Product Description

The PARKER 933246Q is a hydraulic filter element rated at 5 microns, designed to remove oil contaminants from hydraulic fluid circuits. Constructed with microglass filter media, this element measures 1 inch inside diameter and 1.78 inches outside diameter, making it a compact inline replacement element suited for high-efficiency filtration housings. It is installed by hydraulic system technicians and industrial maintenance professionals servicing mobile or stationary hydraulic equipment. Microglass media provides consistent particle capture performance across a range of fluid viscosities and operating temperatures.

This filter element is used in hydraulic systems where fluid cleanliness is critical to component longevity and system performance. Typical applications include industrial machinery, mobile equipment hydraulics, and power unit assemblies. The 933246Q is a direct replacement for elements from multiple OEM manufacturers including Hydac, Hycon, Pti, Fairey Arlon, Pall, Donaldson, Stauff, and Vickers, making it a widely applicable cross-reference option for maintenance and service operations.

Key Features

• 5-micron filtration rating removes fine oil-borne particulate contamination
• Microglass filter media for reliable particle capture and dirt-holding capacity
• Compact dimensions: 1 inch ID and 1.78 inches OD for drop-in housing fitment
• Cross-references multiple OEM part numbers across major filter brands
• Sold individually, no minimum order beyond one unit

Compatibility

Direct replacement for Hydac H9020/8-005BN, Hycon H9020/8-005BN, Pti FK-020-HG-B, Fairey Arlon R920-H-0806A, Pall HC9020FKN8H, Donaldson P165043, Stauff SP020E05B, and Vickers V3042V2V05.

Installation Notes

Hydraulic filter element replacement should be performed by a qualified hydraulic technician. Depressurize and isolate the hydraulic circuit before opening the filter housing to prevent fluid injection hazards. Ensure the housing and sealing surfaces are clean before installing the new element. Dispose of used elements and drained hydraulic fluid in accordance with local environmental regulations.
