Parker 932874Q Hydraulic Filter Element 10 Micron Oil

Product Description

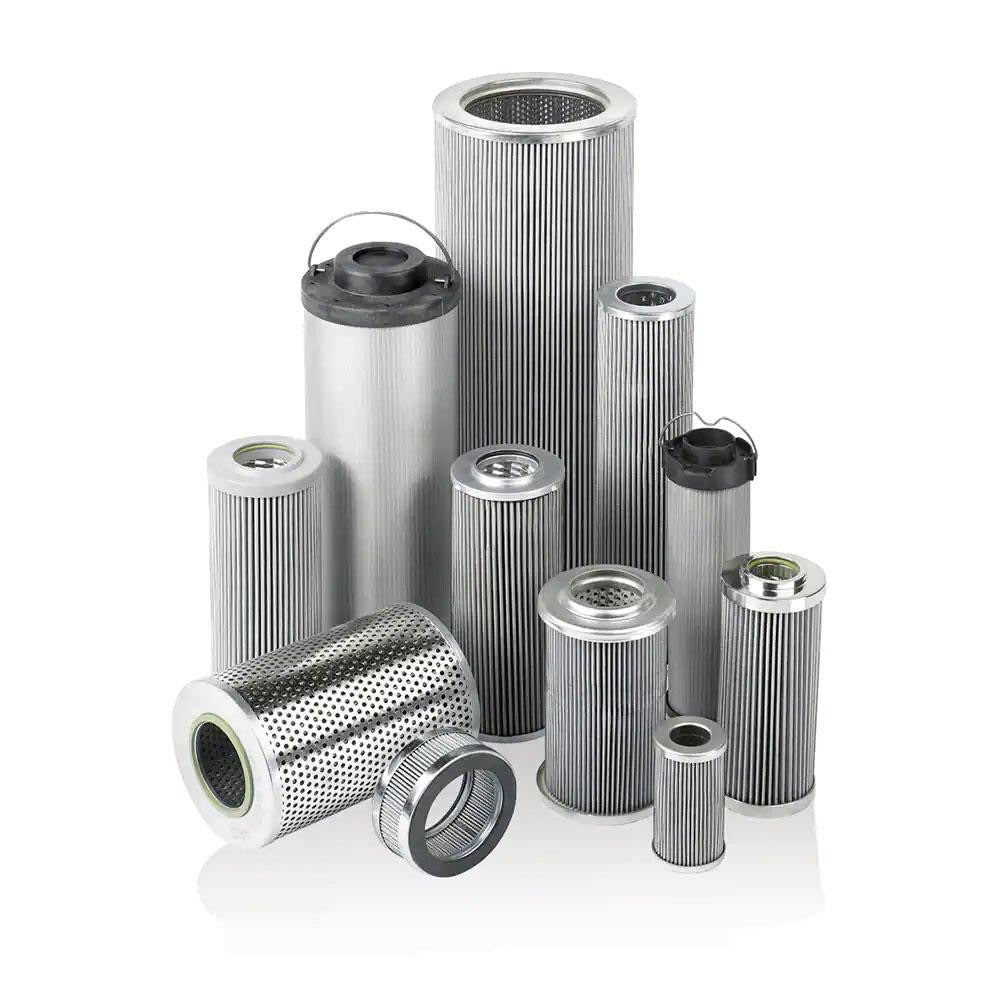

The PARKER 932874Q is a microglass hydraulic filter element rated at 10 microns, designed to remove oil contaminants from hydraulic fluid systems. It measures 4.1 inches inside diameter and 6.0 inches outside diameter and weighs 14.9 pounds. The microglass filter media provides efficient particle capture across a wide range of hydraulic fluid viscosities. This element is intended for industrial and mobile hydraulic systems where maintaining clean fluid is critical to pump, valve, and actuator longevity. Installation is performed by qualified hydraulic system technicians or millwrights during scheduled filter service intervals.

This filter element is suited for use in high-capacity hydraulic filter housings found in industrial machinery, mobile equipment, and power units. It is a direct replacement for elements from multiple OEM suppliers including Hydac, Hycon, Pti, Fairey Arlon, Pall, Donaldson, Stauff, Schroeder, and Vickers, making it a widely applicable service part across many existing filter housing configurations.

Key Features

• 10-micron filtration rating for effective removal of oil contaminants
• Microglass filter media for high dirt-holding capacity and consistent flow performance
• 4.1 inches inside diameter and 6.0 inches outside diameter for correct housing fit
• Cross-references to multiple OEM part numbers from leading hydraulic filter brands
• Sold individually as a single replacement element

Compatibility

Direct replacement for Hydac H8300/39-010BN, Hycon H8300/39-010BN, Pti P83-250-KF-B, Fairey Arlon R830-H-3912A, Pall HC8310FKS39H, Donaldson P171051, Stauff SP300E10B, Schroeder SBF830039S7B, and Vickers V0411B8L10 filter elements.

Installation Notes

Hydraulic filter element replacement should be performed by a qualified hydraulic technician. Depressurize and isolate the hydraulic circuit completely before opening any filter housing. Dispose of used filter elements and drained hydraulic fluid in accordance with applicable local environmental regulations. Inspect the filter housing seals and O-rings at each service interval and replace as needed to prevent bypass leakage.
