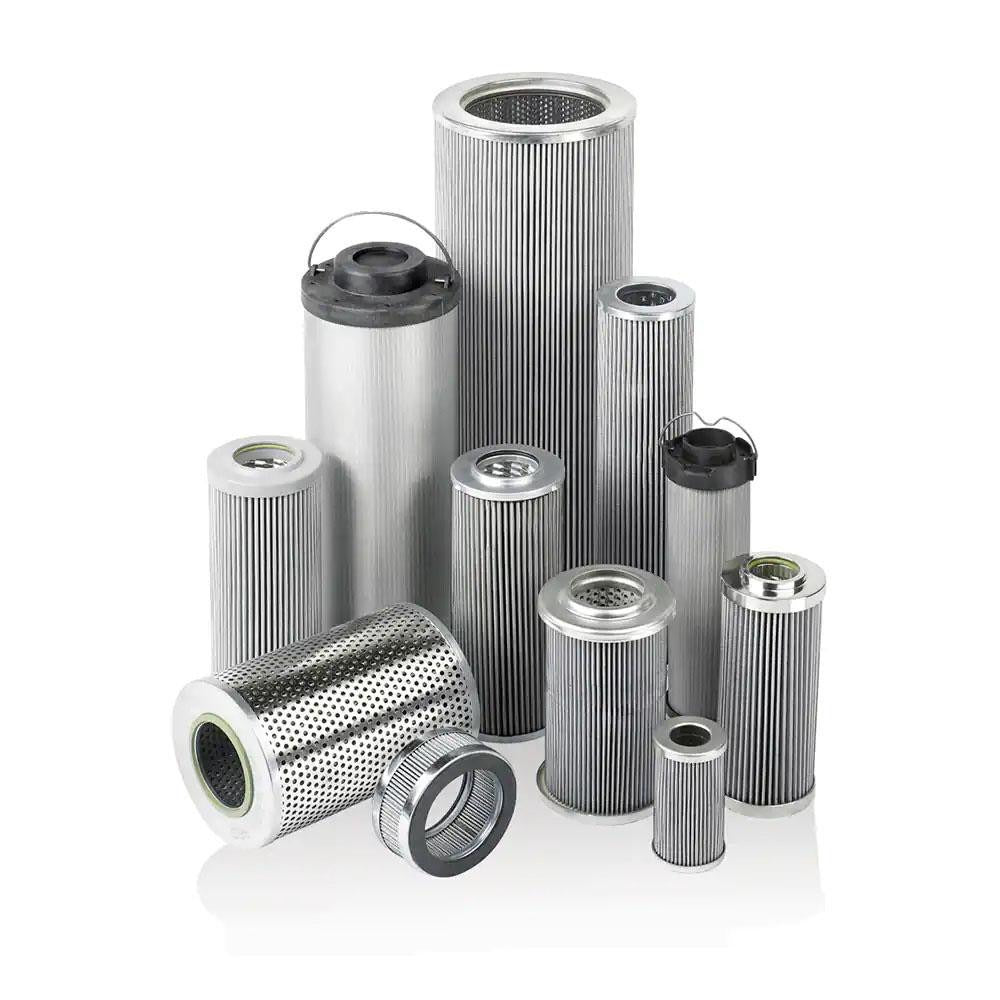

Parker 926698Q Hydraulic Filter Element 2 Micron

Product Description

The PARKER 926698Q is a 2-micron hydraulic filter element designed to remove oil contaminants from hydraulic fluid circuits. Constructed with microglass filter media, it delivers fine particulate capture in demanding hydraulic systems. The element measures 1.7 inches inner diameter and 3.14 inches outer diameter, making it a compact, drop-in replacement for a wide range of OEM housings. It weighs 2.3 pounds. Hydraulic technicians and industrial maintenance professionals install this element during scheduled filter service intervals to maintain fluid cleanliness and protect downstream components such as pumps, valves, and actuators.

This filter element is suited for hydraulic power units and mobile or stationary hydraulic systems requiring fine filtration at the 2-micron level. Its microglass construction supports high dirt-holding capacity and consistent flow performance in oil-based hydraulic fluid applications. It is a direct replacement for elements originally specified under multiple OEM part numbers, making it a practical choice for cross-brand maintenance programs.

Key Features

• 2-micron microglass media for fine oil contaminant removal
• 1.7 inches inner diameter and 3.14 inches outer diameter for broad housing compatibility
• Microglass construction supports high dirt-holding capacity and stable flow
• Replaces elements from Pall, Hydac, Donaldson, Schroeder, Vickers, Stauff, Hycon, PTI, and Fairey Arlon
• Single-element package quantity suitable for individual service calls

Compatibility

This element is a direct replacement for the following OEM part numbers: Hydac H9600/13-003BN, Hycon H9600/13-003BN, PTI HF3-050-GF-B, Fairey Arlon R960-H-1303A, Pall HC9600FKP13H, Donaldson P169432, Stauff SP090E03B, Schroeder SBF960013S3B, and Vickers V6021B4V03.

Installation Notes

Hydraulic filter elements are typically serviced by trained hydraulic technicians or industrial maintenance personnel. Before replacing the element, depressurize the hydraulic system completely and allow fluid to cool to a safe handling temperature. Use appropriate fluid containment to capture any residual hydraulic oil released during housing removal. Follow the equipment manufacturer's torque and reassembly procedures for the filter housing to ensure a leak-free seal after installation.
