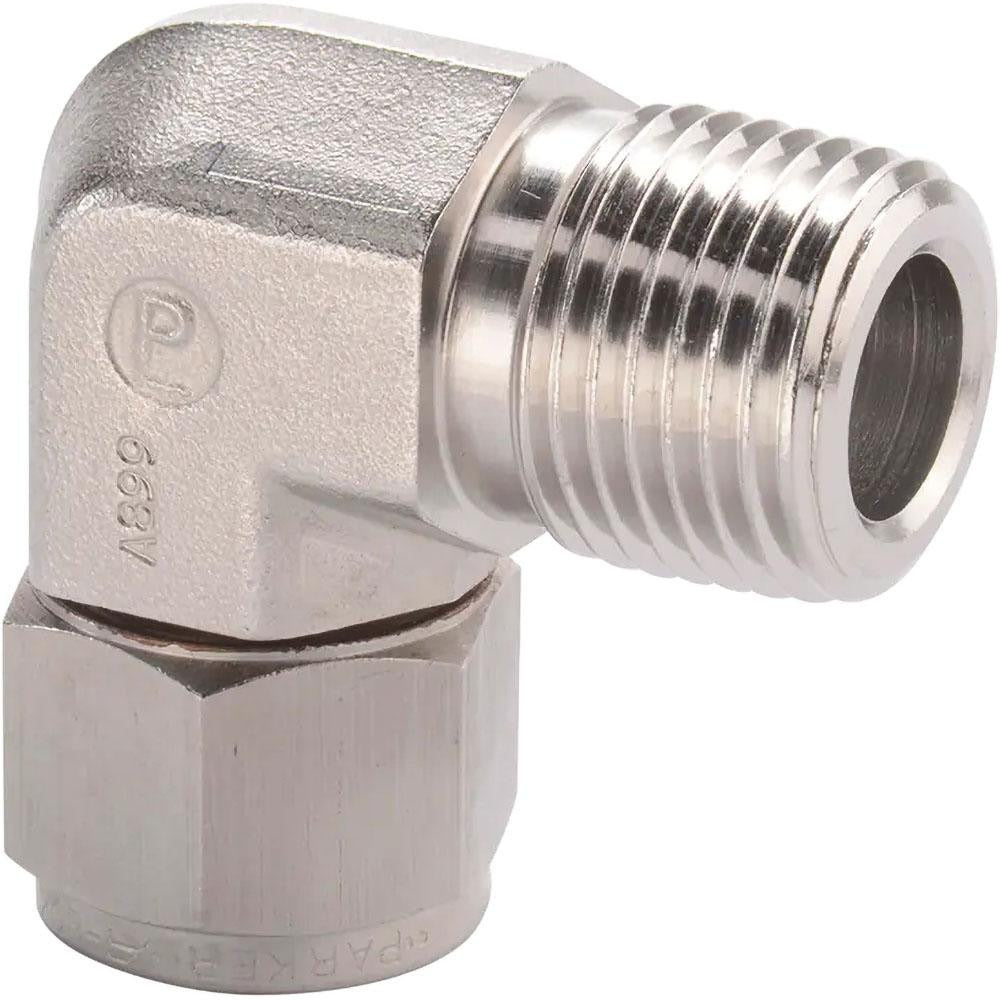

Parker 8MSEL12N-316 Compression Male Elbow 3/4-14 Mnpt

Product Description

The PARKER 8MSEL12N-316 is a stainless steel compression tube male elbow fitting designed to connect compression tubing to a male NPT threaded port in a 90-degree configuration. The fitting accepts a 3/4-14 NPT thread and is rated for a maximum working pressure of 6300 psi, making it suitable for high-pressure fluid and gas line applications. Constructed from 316 stainless steel, it resists corrosion in demanding environments. Licensed plumbers, pipefitters, and instrumentation technicians are the typical installers of this type of fitting in process, industrial, and mechanical piping systems.

This fitting is used in applications where a rigid compression tube must transition to a male NPT threaded connection at a 90-degree angle. Common installation scenarios include high-pressure instrumentation lines, hydraulic and pneumatic systems, chemical process piping, and industrial fluid distribution. Its stainless steel construction makes it appropriate for corrosive media, sanitary environments, and outdoor or marine installations where carbon steel fittings would be unsuitable.

Key Features

• 90-degree male elbow configuration for direction changes in compression tube runs
• 3/4-14 NPT thread size for standard male threaded port connections
• Rated to 6300 psi maximum working pressure for high-pressure service
• 316 stainless steel construction for corrosion resistance in aggressive environments
• Compression x MNPT end connections for tool-assisted, leak-tight assembly

Compatibility

Designed as an OEM-style replacement or direct-install compression tube male elbow fitting for systems using 3/4-14 NPT threaded ports with compression tube connections in industrial, instrumentation, and mechanical piping applications.

Installation Notes

Installation should be performed by a licensed plumber or qualified pipefitter familiar with high-pressure compression fittings and NPT thread standards. Shut off and depressurize the system completely before removing or installing any fitting. Apply an appropriate thread sealant to the NPT threads in accordance with the system fluid and applicable codes. Do not overtighten the compression nut, as over-compression can deform the ferrule and compromise the seal.
