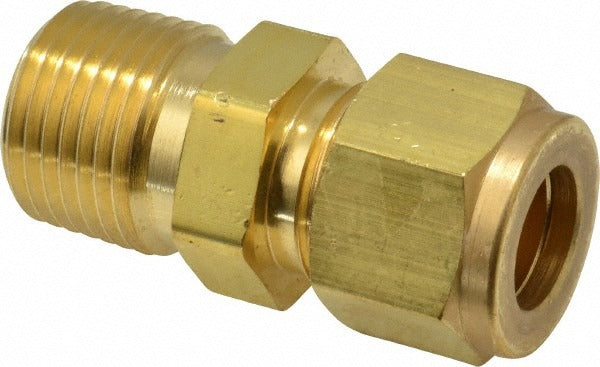

Parker 8MSC8N-B Compression Tube Connector 1/2 Inch Brass

Product Description

The PARKER 8MSC8N-B is a brass compression tube connector designed to join copper or soft metal tubing to a male NPT threaded port. It features a compression fitting on one end and a male NPT thread on the other, making it a standard inline transition fitting used in instrumentation, fluid power, and process piping systems. The connector is rated to 2200 psi maximum working pressure and conforms to ASME-SB75 and ASTM-B75 material standards. At 1.93 inches overall length and 0.2 pounds, it is a compact, durable fitting suited for tight spaces in both residential and light commercial installations.

This fitting is used wherever a compression tube connection must transition to a male NPT threaded port. Typical applications include instrument tubing connections, control line plumbing, refrigeration and HVAC sensing line hookups, hydraulic pilot lines, and general fluid system assemblies. The 1/2-inch thread size makes it appropriate for medium-bore tubing runs. It is installed by plumbers, pipefitters, and HVAC technicians working on systems that require a reliable, leak-resistant tube-to-pipe transition without soldering or welding.

Key Features

• Compression x MNPT end connections for solderless tube-to-pipe transitions
• 2200 psi maximum working pressure rating
• Brass construction conforming to ASME-SB75 and ASTM-B75 standards
• 1/2-inch male NPT thread for standard pipe connections
• Compact 1.93-inch overall length for space-constrained installations
• Single-piece compression fitting design for straightforward assembly

Compatibility

Designed as an OEM-style replacement or new-installation fitting compatible with 1/2-inch compression tube and 1/2-inch male NPT threaded ports in instrumentation, fluid power, and process piping systems. Cross-references to Swagelok part number B-810-1-8.

Installation Notes

Installation is performed by a licensed plumber or pipefitter following applicable IPC and ASME B31 piping code requirements. Depressurize and isolate the system before making or breaking any fitting connection. Hand-tighten the compression nut first, then apply the manufacturer-recommended additional turns with a wrench — do not over-tighten, as this can deform the ferrule and compromise the seal. Inspect the completed connection for leaks before returning the system to service.

WARNING: This product can expose you to chemicals including lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
