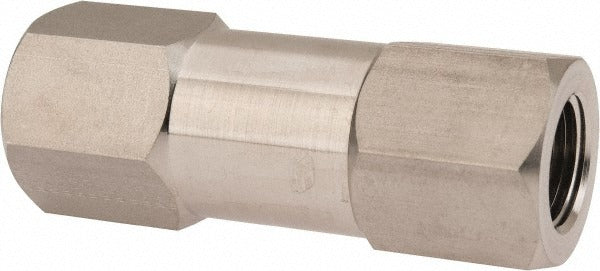

Parker 8F-C8L-1-SS Inline Check Valve 1/2 in Fnpt Ss

Product Description

The PARKER 8F-C8L-1-SS is a 1/2 inch inline check valve built for high-pressure fluid and gas control applications. Constructed from stainless steel in both the body and spring, this valve is rated to a maximum working pressure of 6000 psi with a crack pressure of 1.00 psi. The FNPT x FNPT end connections allow for straightforward threaded installation into existing pipe runs. It is sized at 1/2 inch pipe and weighs 0.9 pounds. Licensed plumbers, pipefitters, and industrial maintenance technicians typically install this type of valve in high-pressure process, instrumentation, or fluid-handling systems.

This check valve is suited for inline installation in demanding environments where backflow prevention is required under high-pressure conditions. The stainless steel construction makes it appropriate for corrosive media, high-purity fluid systems, and applications requiring resistance to rust or chemical degradation. It is commonly used in commercial and industrial settings, including hydraulic lines, pneumatic circuits, chemical processing systems, and instrumentation tubing. The 1/2 inch pipe size fits standard threaded pipe configurations widely found in both process and utility systems.

Key Features

• Maximum working pressure of 6000 psi for demanding high-pressure applications
• Low crack pressure of 1.00 psi allows the valve to open with minimal upstream pressure
• Stainless steel body and spring provide corrosion resistance and long service life
• FNPT x FNPT end connections for straightforward threaded pipe installation
• Inline valve design integrates cleanly into existing pipe runs without special fittings

Compatibility

Designed as an OEM-style replacement or direct-install inline check valve for 1/2 inch FNPT threaded pipe systems requiring high-pressure backflow prevention.

Installation Notes

Installation should be performed by a licensed plumber or qualified pipefitter in accordance with applicable plumbing and piping codes such as the IPC or ASME B31.3. Shut off and fully depressurize the system before removing any existing valve or fitting. Use thread sealant rated for the media type and pressure range when making up FNPT connections. Do not exceed the rated maximum working pressure of 6000 psi in service.
