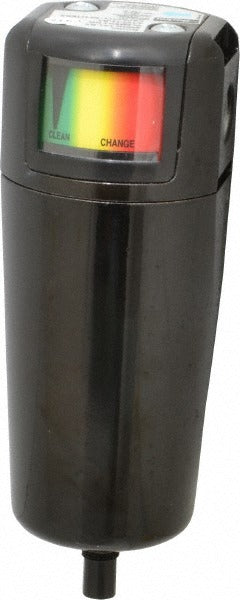

Parker 8004N-1A1-BX Oil Water Filter Separator 25 Cfm

Product Description

The PARKER 8004N-1A1-BX is a compressed air oil-water filter separator designed to remove dust, oil, particulate, and water contamination from compressed air lines. It features 1/2 inch NPT end connections and an automatic drain that purges collected liquids without manual intervention. Rated for 25 CFM flow and a maximum working pressure of 250 psi, this unit handles the demands of industrial and trade service environments. Licensed trades including HVAC technicians, plumbers, and industrial maintenance professionals install this type of separator to protect downstream equipment from moisture and oil carryover in compressed air systems.

This filter separator is suited for use on compressed air distribution systems in light commercial and industrial settings. Typical applications include protecting pneumatic tools, control valves, air-operated equipment, and instrumentation from liquid contamination. The 1/2 inch NPT thread size makes it compatible with standard compressed air piping configurations at flow rates up to 25 CFM. It is appropriate for installations where the compressed air temperature does not exceed 130 degrees F.

Key Features

• Automatic drain eliminates the need for manual purging of collected liquids
• 25 CFM flow capacity suits most light commercial and trade compressed air systems
• 250 psi maximum working pressure supports standard shop and industrial supply lines
• 1/2 inch NPT end connections for straightforward integration into existing piping
• Removes dust, oil, particulate, and water from compressed air streams
• Compact footprint at 8.5 inches high and 3.3 inches wide for tight installation spaces

Compatibility

Designed as an OEM-style replacement or new-installation filter separator for compressed air systems utilizing 1/2 inch NPT connections with flow rates up to 25 CFM and operating pressures up to 250 psi.

Installation Notes

Installation should be performed by a qualified technician familiar with compressed air system plumbing. Depressurize and isolate the compressed air line completely before removing or installing this separator. Apply thread sealant appropriate for compressed air service to the NPT connections and torque to hand-tight plus standard wrench turns per piping best practices. Verify that system operating pressure and temperature do not exceed 250 psi and 130 degrees F respectively before returning the system to service.
