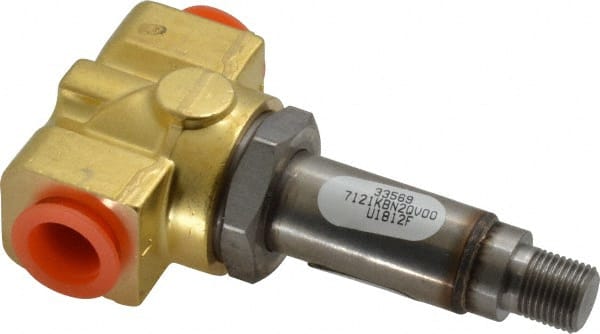

PARKER 7121KBN2QV00 Skinner 2-Way Normally Closed Solenoid Valve

Product Description

The Parker 7121KBN2QV00 is a 2-way direct-acting solenoid valve designed for applications with zero pressure differential and capable of handling medium to high pressures and flows. This valve features a brass body with an FKM seal, making it suitable for air, water, and light oil applications. It can be positioned in any orientation, with a vertical coil preferred for optimum function. The valve is UL Listed and CSA Certified when paired with a NEMA 4X or explosion-proof solenoid enclosure.

• Direct acting valve design.
• Brass body with FKM seal.
• Compatible with air, water, and light oil.

Product Highlights

This solenoid valve provides reliable control in various fluids and is engineered for durability and performance in demanding environments.

Product Information

Standard Information

• Brand: Parker
• Valve Series: Parker Skinner 7000

Technical Specifications

• MPN: 7121KBN2QV00
• Valve Type: Direct Acting
• Functional Type: 2 Way
• Number Of Ports: 2-Way
• Flow Pattern: Normally Closed
• Body Material: Brass
• Seal Material: FKM
• Nominal Size: 1/4 IN
• Port Size: 1/4 NPT
• Orifice Size: 5/32 IN
• Operating Pressure: 0-120 PSI
• Power Rating: 10 W
• Temperature Rating: 185 DEG F
• Standards: UL Listed and CSA Certified
• Coil Included: Yes
