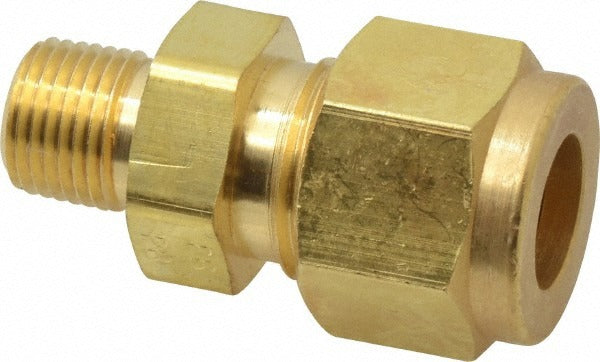

Parker 6MSC2N-B Compression Tube Connector 1/8 Inch Mnpt

Product Description

The PARKER 6MSC2N-B is a brass compression tube connector designed to join tubing to a male NPT threaded port in fluid and pneumatic systems. It features a compression end for tube connection and a 1/8 inch male NPT threaded end for direct port entry. Rated to a maximum working pressure of 2300 psi, this connector is built to ASME-SB75 and ASTM-B75 standards, confirming material and dimensional compliance. Overall length is 1.38 inches. It is installed by licensed plumbers, HVAC technicians, and instrumentation technicians wherever a secure, leak-resistant tube-to-port transition is required.

This connector is suited for residential and light commercial HVAC systems, refrigeration lines, pneumatic instrumentation circuits, and general fluid distribution applications where a compression fitting is needed at a male NPT port. Its brass construction handles a wide range of compatible media including water, air, and many hydraulic fluids. The 1/8 inch NPT thread size is a common port size found in control valves, manifolds, solenoid valves, and pressure transducer ports across HVAC and plumbing installations.

Key Features

• Maximum working pressure of 2300 psi for reliable service in high-demand fluid and pneumatic circuits
• Brass construction conforming to ASME-SB75 and ASTM-B75 material standards
• Compression x male NPT end connections for tube-to-port transitions without soldering or flaring
• 1/8 inch NPT thread size fits a wide range of standard valve bodies, manifolds, and instrument ports
• Compact overall length of 1.38 inches suits tight-clearance installations

Compatibility

Designed as an OEM-style replacement or direct-fit compression connector for applications requiring a 1/8 inch male NPT port connection with a compression tube inlet. Also cross-references to Swagelok part number B-600-1-2 for direct comparison.

Installation Notes

Installation should be performed by a qualified plumber, HVAC technician, or instrumentation mechanic. Shut off and depressurize the system completely before removing or installing any compression fitting. Use the appropriate tube cutter to produce a clean, square tube end and ensure the ferrule seats properly before tightening. Follow applicable codes such as ASME B31.1 or IFGC for the specific system type and media being handled; do not over-tighten compression fittings as this can deform the ferrule and compromise the seal.

WARNING: This product can expose you to chemicals including lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
